Fuel Tank And Attachments Overview

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Hose connections are secured with either spring type or clamp type clamps.

Always replace clamp type clamps with spring type clamps.

Fuel hoses at the engine must only be secured with spring type clamps. The use of clamp or screw type clamps is not permissible.

Hose clip pliers VAS 6340 are recommended for installing spring type clamps.

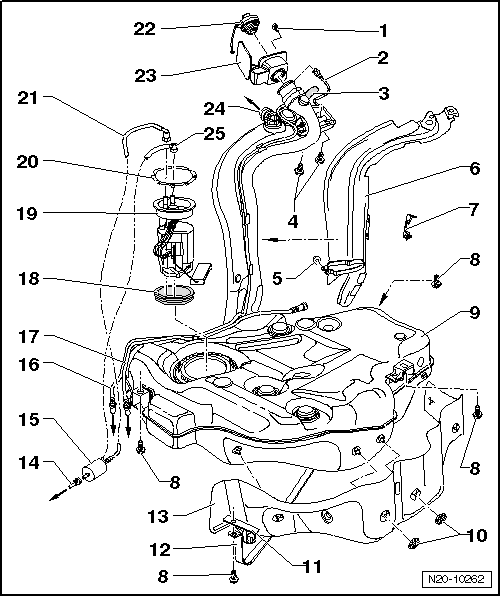

Fig 1: Fuel Tank, Assembly Overview
GWWN20-10262Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
  2. Ground Connection
    • Make sure it is tight.
  3. Vacuum Line
    • To the leak detection pump -V144-.
  4. Bolt
    • 10 Nm
  5. Rivet
  6. Protective Plate
    • Riveted to the lower clamp at the factory.
    • If replacing the fuel tank, position the protective plate on the filler tube and rivet to the clamp. The holes in the protective plate must align with the holes on the filler tube.
  7. Wiring Router
    • For the Anti-lock Brake System (ABS) line.
    • Clipped to the protective plate.
  8. Bolt
    • 25 Nm
    • Always replace.
    • Only use bolts with loose washers to secure the fuel tank straps. The straps could twist when the bolts are tightened if other bolts are used.
  9. Fuel Tank
    • Removing and installing, refer to FUEL TANK .
  10. Retainer
  11. Exhaust System Bracket
  12. Securing Strap
    • Pay attention to the installed position.
  13. Heat Shield
  14. Supply Line
    • To the fuel rail.
    • Make sure it is tight.
  15. Fuel Filter
    • Installed position: The arrow points in the direction of flow.
    • Removing and installing, refer to FUEL FILTER .
  16. Vacuum Line
    • From the leak detection pump to the intake manifold.
    • Clipped to the fuel tank.
    • Make sure it is tight.
  17. Vent Line
    • From the EVAP canister to EVAP canister purge regulator valve 1 -N80-.
    • Clipped to the fuel tank
    • Make sure it is tight.
  18. Seal
    • Always replace.
    • Installed into the opening in the fuel tank dry.
    • Coat the inside of seal with fuel before installing the fuel delivery unit.
  19. Fuel Delivery Unit
  20. Lock Ring
    • 110 Nm
    • Make sure it is tight.
    • Use the wrench T10202 to remove and install.
  21. Return Line
    • Blue
    • Attached to the side of the fuel tank.
    • Make sure it is tight.
  22. Cap
    • Replace the seal if it is damaged.
  23. Fuel Filler Door Unit
  24. to the Evaporative Emission (EVAP) Canister
  25. Supply Line
    • Black
    • Attached to the side of the fuel tank.
    • Make sure it is tight.
Fig 2: Fuel Delivery Unit, Installed Position
GWWN20-10626Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tab -2- on the fuel delivery unit must lie between the tabs -1 and 3-.

NOTE:

The -arrow- points in the direction of travel.

The fuel delivery unit can only be installed in this position.
