Clutch System Overview: Notes
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Obtain the anti-theft code for the radio before disconnecting the battery.
Turn off the ignition and disconnect the battery ground cable. Refer to Removal and Installation .
Connect the battery and follow the procedures to be performed after connecting a battery. Refer to Removal and Installation .
Lubricate all bearing areas and contact surfaces.

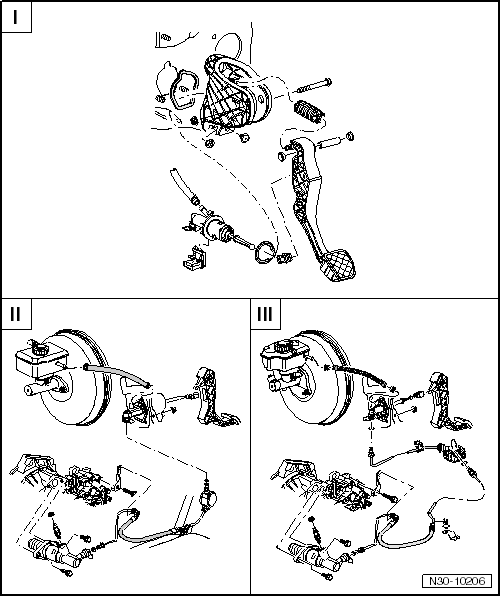

- I -
- II -
- III -
Hydraulics Overview, Right Hand Drive (RHD) - Does Not Apply to the US/Canada
