Secondary Air Injection Solenoid Valve -N112-

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Removing

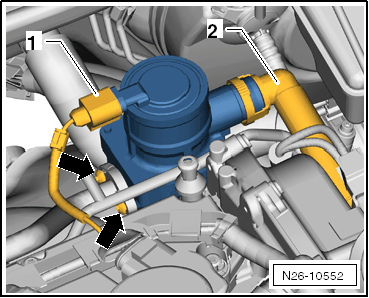

-- Disconnect the connector -1- and remove the connecting pipe -2-.

Fig 1: Removing Secondary Air Injection Solenoid Valve (1 of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

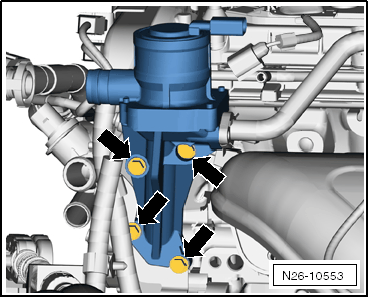

-- Remove the bolts -arrows- from the Secondary Air Injection (AIR) pipe.

-- Remove the bolts from the AIR solenoid valve and remove the valve.

Fig 2: Removing Secondary Air Injection Solenoid Valve (2 of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Replace the gaskets.

-- Only tighten the bolts by hand.

-- Tighten the AIR pipe bolts -arrows- to the AIR solenoid valve.

-- Connect the connector -1- and connecting pipe -2-. Make sure the connecting pipe is seated securely.

Fig 3: Installing Secondary Air Injection Solenoid Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications

Component	Nm
AIR solenoid valve	10
AIR pipe	10
