Rear Lid Seal

Removing

-- Pull off rear lid seal -1- from body flange.

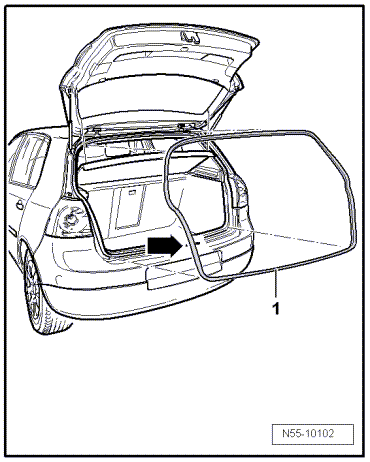

Fig 1: Identifying Rear Lid Seal Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Align rear lid seal -1- with vulcanized point -arrow- to center of left tail lamp.

Fig 2: Identifying Rear Lid Seal Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
