Rear Lid Locking And Unlocking Components Assembly Overview

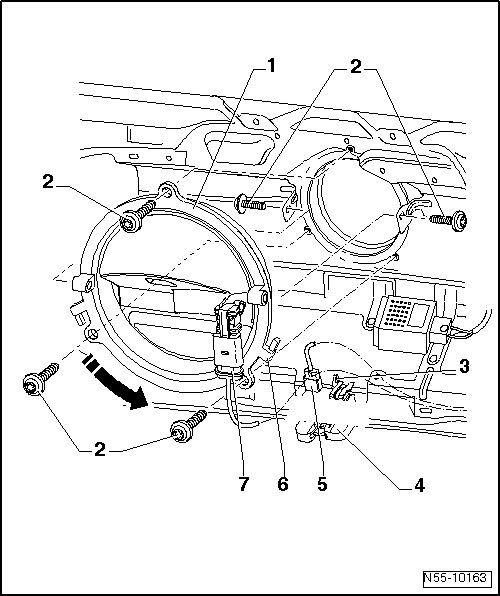

Fig 1: Identifying Rear Lid Locking And Unlocking Components, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Lid Handle Unlock Switch -E234-
   • Removing and Installing REAR LID RELEASE ELEMENT
2. Bolt
   • Qty. 5
   • 4 Nm
3. Emergency release
   • Emergency release is accessed through an opening in the rear lid trim.
4. Rear lid lock
   • Removing and Installing REAR LID LOCK
5. Lid lock connector
6. Angle bracket
7. Unlocking element connector
