Hood Locking And Unlocking Components Assembly Overview

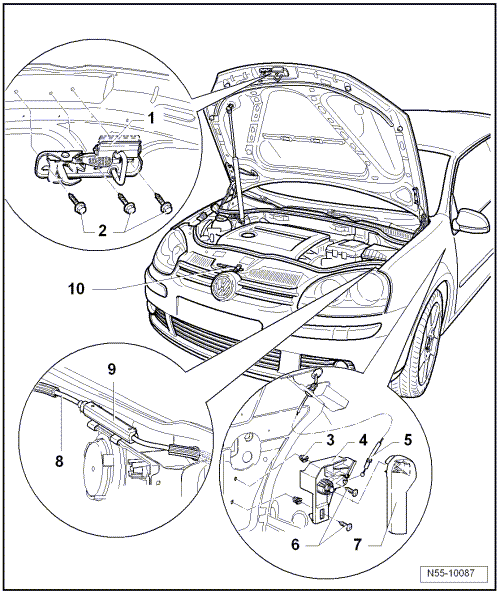

Fig 1: Identifying Hood Locking And Unlocking Components, Assembly Overview
GWWN55-10087Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Catch
    • Removing:

      -- Remove bolts -2- and remove catch.

    • Adjusting:

      -- Catch can be adjusted toward the left or right in its longitudinal holes.

  2. Bolt
    • Qty. 3
    • 10 Nm
  3. Expanding nut
    • Qty. 2
  4. Mounting bracket
  5. Release
    • Clipped into mounting bracket.
  6. Bolt
    • Qty. 2
    • 1.5 Nm
  7. Operating lever
  8. Release
    • Clipped in on wheelhousing and lock carrier.
  9. Release coupling
  10. Hood lock
