Fuel Filler Door Unit Assembly Overview

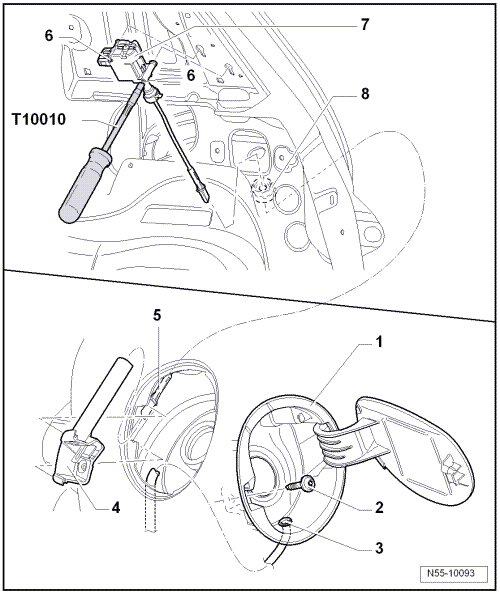

Fig 1: Identifying Actuator Remove/Install Components
GWWN55-10093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Fuel filler door unit
  2. Bolt
    • 1.5 Nm
  3. Drain hose
  4. Assembly piece
  5. Release rod
  6. Mounting bolt for actuator
    • Qty. 2
    • 1.5 Nm
  7. Fuel Filler Cap Central Locking Actuator (F219)
  8. Seal
