Significance of figures in fourth 8 digit number block

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

Relevance: Indicates whether the readiness code has been successfully set, or not
Display bits 2 through 8 are NOT required for diagnosis
If the first display bit shows a "0" the readiness code has been set

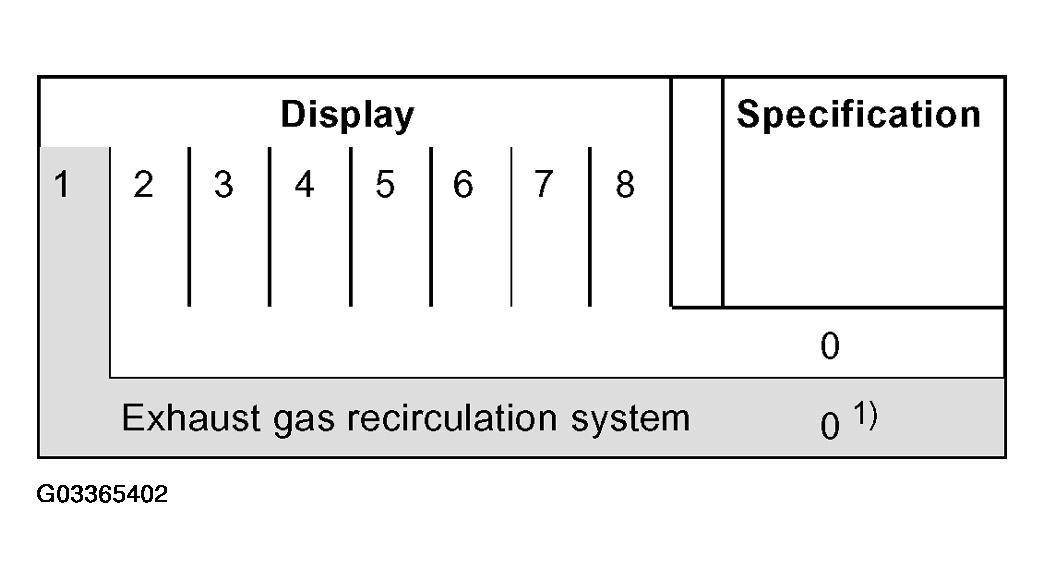

Fig 1: Scan Tool Display - Readiness Code Displaying (6 Of 8, 8 Digit Number Block)

NOTE: For footnote 1 in Fig 1, a number "1" indicates the readiness code is NOT set

Press ==> button to display any further diagnostic data.

Indicated on display (must appear when all diagnostic functions have been completed)

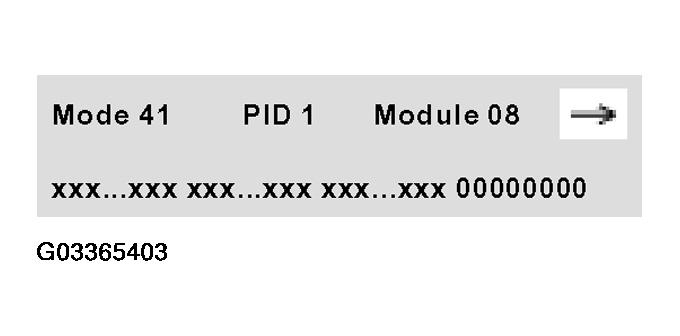

Fig 2: Scan Tool Display - Readiness Code Displaying (7 Of 8)

If OK:

Press ==> button.
Press buttons -0- and -6- to select "End Output" function 06.
Press -Q- button to confirm input.

If one or more of the diagnostic checks has not been completed, as indicated on the display (example, Fig 3):

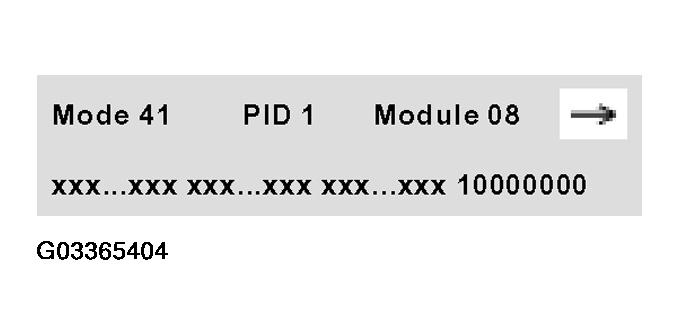

Fig 3: Scan Tool Display - Readiness Code Displaying (8 Of 8)

Press -C- button.
Create readiness code. See READINESS CODE, SETTING (UP TO M.Y. 1997) .
Display readiness code. See READINESS CODE, DISPLAYING .

If DTC memory has been erased:

Create readiness code again. See READINESS CODE, SETTING (UP TO M.Y. 1997) .
