Fuel Pump (FP) Module, removing and installing: Removing: Installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

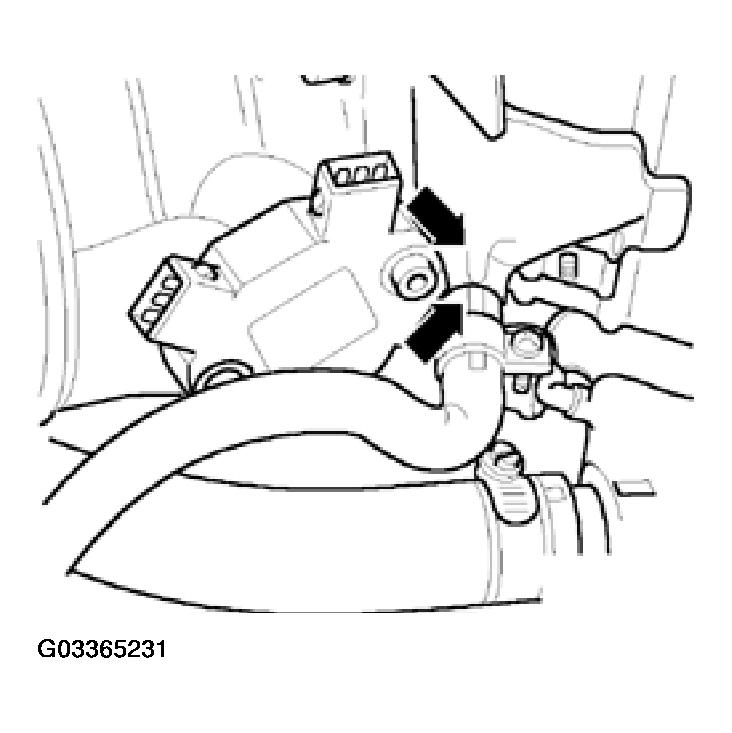

Install Fuel Pump (FP) Module in reverse order of removal.
NOTE:
When installing the Fuel Pump Module, ensure that the arm for Fuel Level Sensor (G) is not bent.

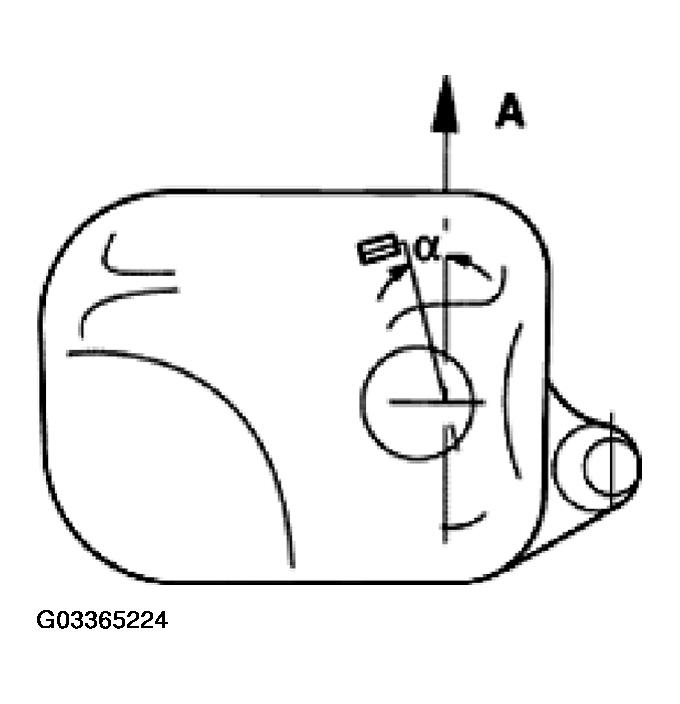

When unit is correctly assembled, the Fuel Level Sensor float points forward at angle alpha to vehicle direction of travel -A-. See Fig 1 .
When unit is correctly assembled, the Fuel Level Sensor float points forward at angle alpha to vehicle direction of travel -A-. See Fig 1 .
- m = 5°
- Lubricate flange seal with gasoline for assembly.
- Installation position of flange, See Figure
