Leak Detection Pump, resistance checking

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect 3-pin harness connector from LDP -V144-.
Set Fluke 83 multimeter to resistance.
Connect Fluke 83 multimeter between terminals -1- and -3- of Leak Detection Pump -V144- and measure resistance.
Specification: 640 to 720 ohms

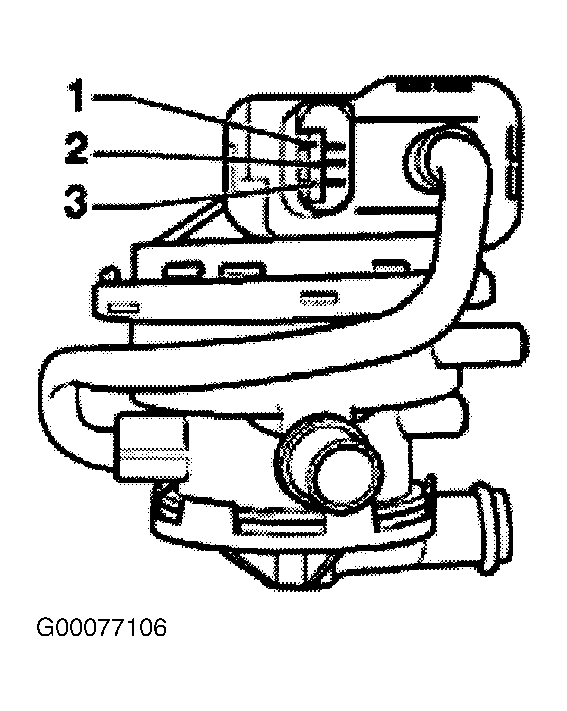

Fig 1: Identifying Leak Detection Pump Connector Pins
Courtesy of AUDI OF AMERICA, INC.
Connect Fluke 83 multimeter between terminals -2- and -3- of LDP -V144- and measure resistance.
Specification: 12.5 to 19.5 ohms

If specifications not obtained:

Replace LDP -V144-.

If no malfunction in resistance was found:

Replace Motronic Engine Control Module (ECM) -J220-.
