Cooling system components, body side
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

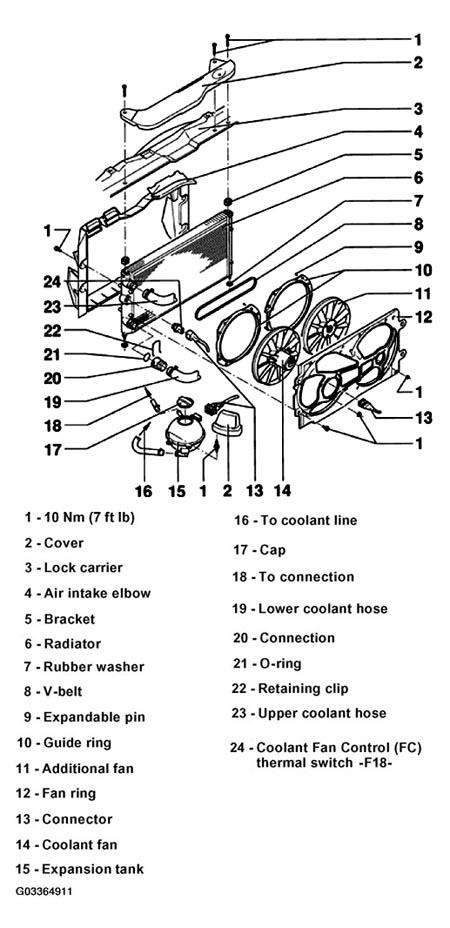

The following list pertains to Fig 1 .
- 10 Nm (7 ft lb)
- Cover
- Lock carrier
- Air intake elbow
- Bracket
- Radiator
- Removing and installing RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- After replacing, completely replace engine coolant
- Rubber washer
- V-belt
- Expandable pin
- Guide ring
- Note installed position
- Secured to lock carrier -3- with clips
- Removing and installing, see RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- Additional fan
- Fan ring
- Connector
- Coolant fan
- Removing and installing, see RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- Expansion tank
- - To coolant line
- See 9
- Cap
- Check using cooling system tester VAG1274 and 1274/4
- Test pressure: 1.3-1.5 bar (20-23 psi)
- - To connection
- See 3 item 3
- - Lower coolant hose
- To engine coolant pump, see 18
- Connection
- O-ring
- Always replace
- Retaining clip
- - Upper coolant hose
- To connection, see 19 item 19
- Coolant Fan Control (FC) thermal switch -F18-
- 35 Nm (26 ft lb)
- For electric fan
- Only with optional extras: third speed coolant Fan Control (FC) thermal switch - F165 -, see 7
Switching temperatures
Stage 1:
- On: 92-97 °C (198-207 °F)
- Off: 84 to 91 °C (183-196 °F)
Stage 2:
- On: 99-105 °C (210-221 °F)
- Off: 91-98 °C (196-208 °F)
