Front Safety Belt Height Adjuster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

-- Remove upper B-pillar trim. Refer to UPPER B-PILLAR TRIM .

NOTE:

Belt anchor or anchor rail does not need to be removed on seat belt.

-- Remove bolt -1- (40 Nm) and remove belt relay -2- from belt height adjuster.

-- Remove bolt -3- (20 Nm) and separate belt height adjuster -4- from mounting in carrier plate.

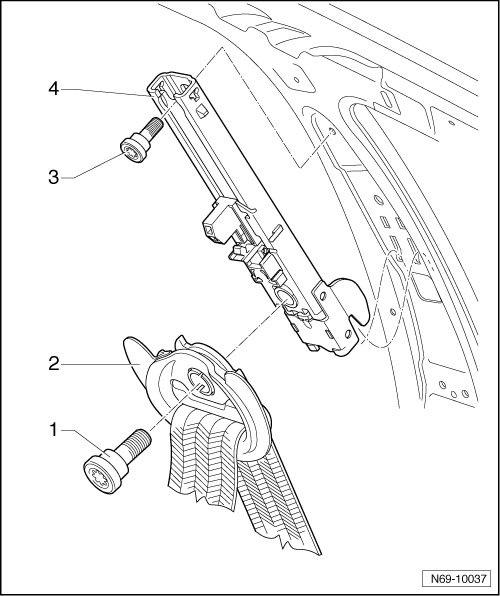

Fig 1: Identifying Front Seatbelt Height Adjuster Removing/Installing Components
GWWN69-10037Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
