Center Rear Lap Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removal

-- Remove seat bench. Refer to REAR SEATS, COVERS AND UPHOLSTERY .

-- Remove backrest:

-- Remove the bolt -1- (40 Nm) and remove lap belt -2- from body.

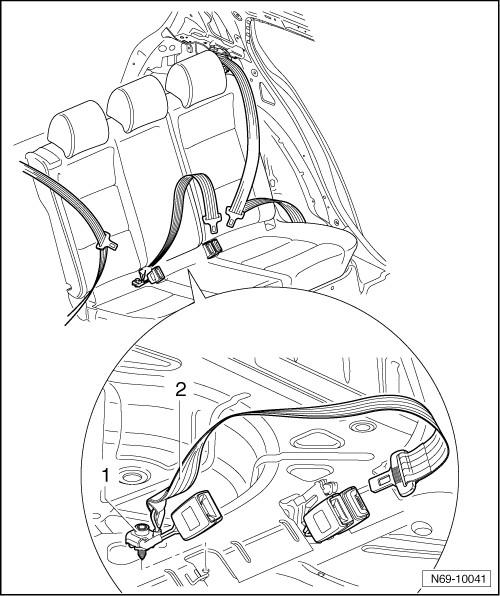

Fig 1: Identifying Center Rear Lap Belt Remove/Install Components
GWWN69-10041Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
