Child Seat Anchors In Rear Shelf

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removal

-- Open cover cap -1-.

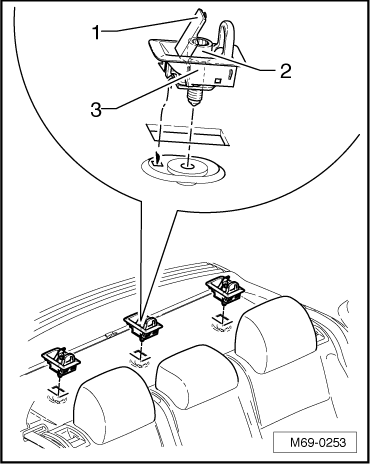

Fig 1: Identifying Child Seat Anchors (Latch System "Lower Anchors And Tethers For Children"), In Rear Shelf
GWWM69-0253Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -2- (20 Nm).

-- Remove child seat anchor -3- from rear shelf.

Installation

-- To install, perform the steps used for removal in reverse order.
