Rear Center 3-Point Seat Belt Assembly Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

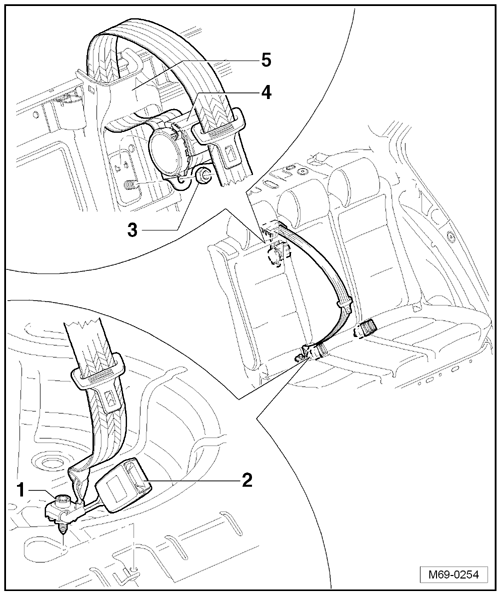

Fig 1: Identifying Rear Center 3-Point Seatbelt, Assembly Overview
GWWM69-0254Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
  2. Belt Latch
  3. Hex Nut
    • 40 Nm
  4. Automatic Belt Retractor
  5. Console
