Seat Occupied Sensor Assembly Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

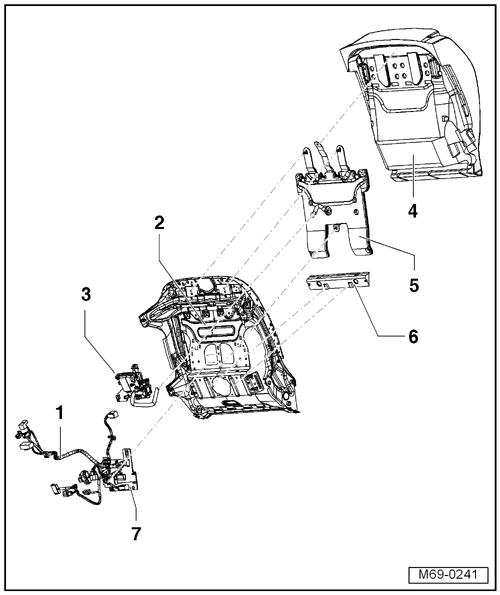

Fig 1: Identifying Passenger Occupant Detection System (PODS), Assembly Overview
GWWM69-0241Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Seat Wiring Harness
  2. Seat Frame
  3. Seat Occupied Recognition Control Module -J706-
  4. Front Seat Cushion Upholstery
    • Must not be separated from mat for seat occupied recognition
  5. Passive Occupant Detection System Mat
    • Must not be removed from pressure hose and upholstery of front seat cushion
  6. Insertion Profile
    • Note location
  7. Bracket
    • White
