Seat Occupied Recognition System Parts Repair Set

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

If there is a malfunction in one of the system components, it must be replaced the repair set specified by the data for the affected vehicle. This includes:

CAUTION:

Do not disconnect the individual parts of the seat occupied recognition repair set from each other.

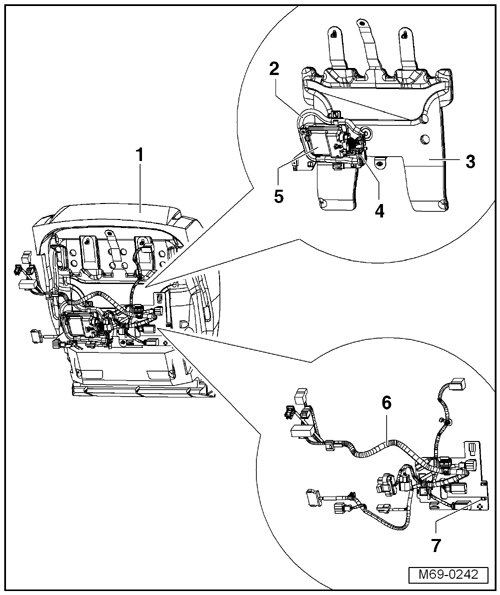

Fig 1: Identifying Repair Kit Components For Passenger Occupant Detection System (PODS)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upholstery of Front Seat Cushion
Pressure Hose
Passive Occupant Detection System Mat
Seat Occupied Recognition Pressure Sensor -G452-
Seat Occupied Recognition Control Module -J706-
Front Seat Wiring Harness
Bracket
- White
  CAUTION:
  Read the instructions on the repair set packaging so it is used correctly. Incorrect handling can cause system malfunction.

After installing "seat occupied recognition repair kit" and/or "belt force sensor", labels (tear-off strips only) from the new components must be affixed to the "registration tag 2 for airbag systems". "Registration tag 2 for airbag systems" should be sent to importer for registration.
