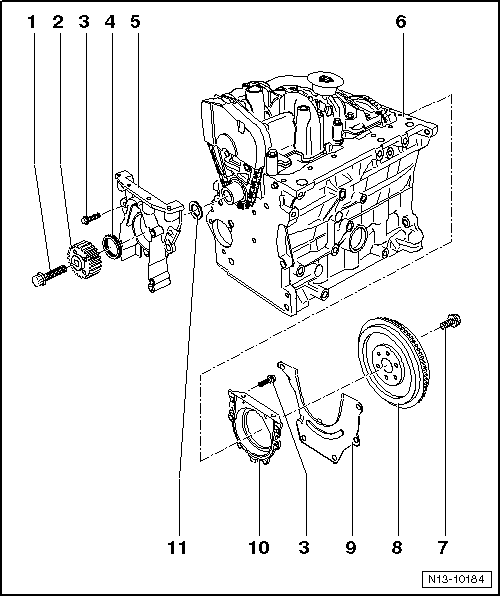

Sealing Flange Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt, 90 Nm + 90° (1/4) additional turn
- Crankshaft Toothed Belt Gear
- Bolt, 15 Nm
- Seal
- Do not additionally oil or grease the sealing lip of the oil seal.
- Replacing, refer to CRANKSHAFT SEAL, BELT PULLEY SIDE .
- Sealing Flange, Belt Pulley Side
- Must be located on the alignment pins.
- Removing and installing, refer to SEALING FLANGE, BELT PULLEY SIDE .
- To remove and install, remove the oil pan.
- Cylinder Block
- Oil pump with differential shaft gear, removing and installing OIL PUMP WITH BALANCE SHAFT DRIVE .
- Crankshaft assembly overview. Refer to CRANKSHAFT ASSEMBLY OVERVIEW .
- Piston and connecting rod assembly overview. Refer to PISTON AND CONNECTING ROD ASSEMBLY OVERVIEW .
- Bolt, 60 Nm + 90° (1/4) additional turn
- Always replace.
- Flywheel
- To remove and install the flywheel, secure using the flywheel retainer3067.
- Intermediate Plate
- Must be located on the alignment pins.
- Do not damage or bend when doing assembly work.
- Sealing Flange with Seal
- Only replaced as a complete assembly.
- Removing and installing, refer to SEALING FLANGE, FLYWHEEL SIDE .
- Diamond Disc
- Always replace.
