Windshield And Headlamp Washer System, Checking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Windshield Washer Fluid, Checking Freeze Protection and Filling

Special tools and workshop equipment required

Refractometer T10007

Fig 1: Identifying Refractometer T10007
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Read the bright/ark boundary to obtain an accurate reading for the following tests. Place a drop of water on the glass to improve the readability of the bright/dark boundary. The bright/dark boundary can be clearly recognized on the "WATERLINE".

-- Check the concentration of the anti-freeze additive using T10007 (operating instructions).

Scale -1- of refractometer applies to Windshield Cleanser Concentrate G 052 164.

Fig 2: Identifying Refractometer T10007 Scales

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The scale -2- is designed for commercially available windshield cleanser as well as a mixture of commercially available windshield cleanser and Windshield Cleanser Concentrate G 052 164.

Mixture Ratio

Freeze Protection to	Window Washer Fluid Concentrate G 052 164	Water
in summer	1 part	4 part
-16 °C	1 part	2 part
-35 °C	1 part	1 part
-40 °F/C	2 part	1 part

Filling-up with Fluid:

The windshield washer system fluid reservoir must be filled.

Use only Windshield Cleanser Concentrate G 052 164 when filling the windshield washer fluid reservoir.

NOTE:

Windshield Cleanser Concentrate G 052 164 protects the spray nozzles, the reservoir and the hoses from freezing.

All vehicles with fan type spray nozzles must be filled with Windshield Cleanser Concentrate G 052 164 as this fluid has a low viscosity at minus temperatures. The complicated spray jet system could otherwise become blocked due to crystallized washer fluid that can affect the fan pattern of the spray nozzle. Windshield Cleanser Concentrate G 052 164 assures that the fan type spray nozzles remain functional even at low temperatures.

Fill with Windshield Cleanser Concentrate G 052 164 in the warmer season also. The powerful cleanser removes wax and oil deposits from the windows.

Freeze protection (anti-freeze) must be guaranteed to approximately -13 °F (-25 °C) (approximately -31 °F (-35 °C) in countries with an arctic climate) in the washer system.

Windshield Wiper and Washer System, Checking and Adjusting Spray Nozzles

NOTE:

In case of an uneven spray field due to dirt in spray nozzles, remove nozzle. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation and flush out with water opposite to spraying direction.

Subsequently blowing through in the opposite direction of the spray flow with compressed air is permitted.

CAUTION:

Do not use solid objects to clean the spray nozzles!
Do not use a needle or similar under any circumstance to adjust spray nozzles, otherwise the water hoses in the spray nozzles may be damaged!

Special tools and workshop equipment required

Adjustment Tool T10127 equipped with needle 3125/ 5 A

Fig 3: Identifying Adjustment Tool T10127 Equipped With Needle 3125/ 5 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Spray Nozzle Adjustment of Front Window:

Fig 4: Identifying Spray Nozzle Pattern

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The washer nozzles are preset. Small height adjustments can be made.

-- If both spray fields are not at same height, adjust spray direction upward or downward as follows:

-- Adjust the spray stream by turning at the adjuster -arrow- with a screwdriver.

Fig 5: Identifying Spray Nozzle Adjusting Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

"Clockwise" deeper adjustment.
"Counter-clockwise" higher adjustment.

Rear Window Washer Nozzle Adjustment

-- Adjust nozzle with T10127 so that fluid sprays onto upper third of rear window, as shown.

Fig 6: Identifying Rear Window Wiper And Washer Operation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Headlamp Washer System, Checking and Adjusting Spray Nozzles

NOTE:

Subsequently blowing through in the opposite direction of the spray flow with compressed air is permitted.

CAUTION:

Do not use solid objects to clean the spray nozzles!
Do not use a needle or similar under any circumstance to adjust spray nozzles, otherwise the water hoses in the spray nozzles may be damaged!

Special tools and workshop equipment required

Adjustment Fixture 3019A or

Fig 7: Identifying Adjustment Tool VAS 3019A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adjustment Tool T10167

Spray jet adjustment for left headlight (right headlight is identical but reversed)

Check Spray Nozzle Setting

-- Switch on driving lights.

-- Operate the windshield washer system.

The headlamps are washed when windshield washer lever is held in "wipe position" at least 1.5 seconds.

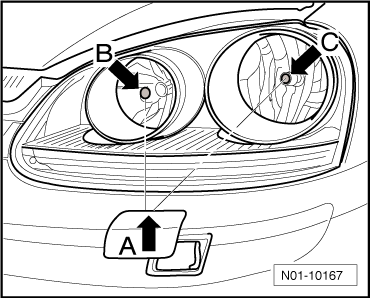

The spray should hit the center of the headlamp lens, see -B- and -C-.

Fig 8: Identifying Headlight Washer Spray Contact Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adjusting Nozzles

-- Switch on driving lights.

-- Operate the windshield washer system.

The headlamps are washed when windshield washer lever is held in "wipe position" at least 1.5 seconds.

Spray nozzles -arrow- are driven outward.

Fig 9: Identifying Headlight Spray Nozzles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform the following:

-- Adjust spray direction of nozzle using T10167 or 3019A at upper edge of headlight, position -B- and -C- out.

Fig 10: Identifying Headlight Washer Spray Contact Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
