Upper Engine Cover, Removing And Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • To install engine cover or to engage at mounting points, be sure not to strike the engine cover with a fist or tool, danger of damage.

2.0L TSI

Removing

-- Disengage engine cover at the retaining points -arrows- and remove engine cover upward.

Fig 1: Identifying Engine Cover Attachment Points
GWWN01-10595Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Set engine cover onto retaining points -arrows- and press it on, until it is engages.

2.0L TFSI

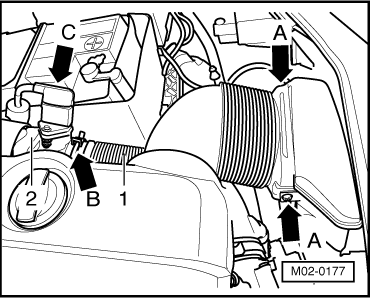

Fig 2: Identifying Air Intake Components
GWWM02-0177Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove bolts from air intake -arrows A-.

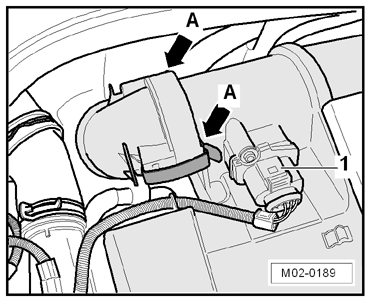

Fig 3: Identifying Fastening Clips
GWWM02-0189Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect connector -1- from Mass Air Flow (MAF) sensor and set connector aside.

-- Release both fastening clips -A arrows-.

Fig 4: Identifying Engine Cover Remove/Install Components -- 2.0L TFSI Vehicles From Model Year 2006
GWWN01-10261Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First release engine cover at -arrow 3-, then -arrow 4- and raise.

Installing

Installation is the reverse of removal.

2.0L FSI

Removing

Fig 5: Identifying Engine Cover Mounting Points
GWWN01-10300Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip engine cover at mounting points -arrows- and remove upward.

Installing

Installation is the reverse of removal.

2.5L

Special tools and workshop equipment required

Fig 7: Identifying Air Intake Components
GWWM02-0177Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove bolts from air intake -arrows A-.

-- Release the clamp from the Mass Air Flow (MAF) sensor -arrow B- with the VAS 5024A and push it back.

-- Disconnect the air intake hose -1- from the Mass Air Flow (MAF) sensor -2-.

-- Disconnect connector -arrow C- from Mass Air Flow (MAF) sensor and lay connector aside.

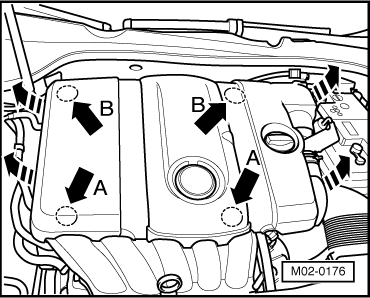

Fig 8: Identifying Engine Cover Mounting Points
GWWM02-0176Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First, pull the engine cover at the fastening points -arrows A- carefully out from the retainer.

-- Lift the front of the engine cover slightly.

-- Then, pull engine cover carefully at mounting points -arrows B- out of retainer.

-- Carefully lift the engine cover upward and out -movement - arrows-.

NOTE:

Make sure that the Mass Air Flow (MAF) sensor is not damaged when removing the engine cover.

Fig 9: Identifying Engine Cover Mounting Points
GWWM02-0176Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- First place engine cover on to rear mounting points -arrows B-, then on to front mounting points -arrows A-.

Carefully press by hand on to mounting points until engine cover engages audibly.

NOTE:

Make sure that the Mass Air Flow (MAF) sensor is not damaged when installing the engine cover.

Installation is reverse of removal.

1.9L TDI PD

Removing

Fig 10: Identifying Engine Cover Components & Fastening Points
GWWN01-10383Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Engine cover consists of two individual parts.

Fig 11: Identifying Engine Cover Components & Fastening Points
GWWN01-10383Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully disengage engine cover in the following sequence at the individual fastening points and raise up.

-- Remove outer part -1-.

-- Carefully release center part -2- and raise slightly.

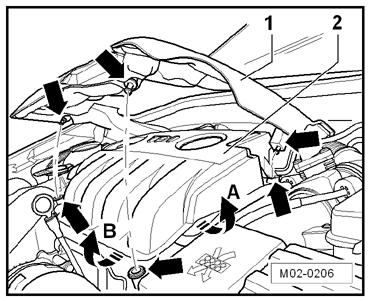

Fig 12: Identifying Engine Cover Fastening Points
GWWM02-0206Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Fig 13: Identifying Center Engine Cover Fastening Points
GWWN01-10382Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position engine cover on fastening points -arrows- and press on.

-- Then position outer part -1- on attachment points -arrows- and press on.

Fig 14: Identifying Engine Cover Fastening Points
GWWM02-0206Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2.0L TDI PD Diesel, 103 KW

Fig 15: Identifying Oil Dipstick -1- And Direction To Lift Engine Cover -Arrow 2-
GWWN01-10301Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Pull out oil dipstick -1-.

-- Disengage and lift engine cover -arrow 2-.

-- Then remove forward -upper arrow-

Fig 16: Identifying Engine Cover -A- On Fastening Points -Arrows 1 To 4-
GWWN01-10384Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Slide engine cover -A- in at fastening point first -upper arrow-.

-- Then position engine cover -A- on other fastening points -arrows 1 to 4- and press on until you feel it engage.

2.0L TDI CR Diesel

Removing

-- Disconnect the lift the engine cover on the mounting points -arrow-.

Fig 17: Locating Engine Cover On Mounting Points
GWWN01-10598Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

CAUTION:

Before installing the engine cover, make sure the 4 mounting elements (ball sockets) are correctly positioned; adjust them if necessary. Otherwise the engine cover will get damaged.

-- If necessary push the ball sockets on the engine cover into the correct position.

Fig 18: Identifying Correct Position Of Ball Sockets
GWWN10-10274Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the engine cover on the mounting points and press on the corners.
