Transportation Mode, Switching Off

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

-- Connect the diagnostic tester. Refer to VEHICLE TESTER, CONNECTING .

-- Switch on the ignition.

Indicated on display:

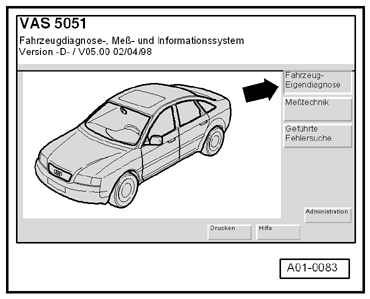

Fig 1: Identifying Vehicle Self-Diagnosis Button On Scan Tool Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Select Operating Mode

-- Press button for Vehicle Self-Diagnosis on display.

NOTE:

If the displays indicated in the procedure are not shown on the display. Refer to Operating instructions for VAS 5051 or VAS 5052

Indicated on display:

Fig 2: Identifying Grouped Services Selection On Scan Tool Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press "Grouped services" on display.

Indicated on display:

Fig 3: Identifying Switch Off Transport Mode Selection On Scan Tool Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press "Switch off transport mode" on display.

End Output

Indicated on display:

Fig 4: Identifying "Go To" Button On Scan Tool Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the Go to button -arrow- on display.

Indicated on display:

Fig 5: Identifying "Exit" Button On Scan Tool Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press End button -arrow- on display.

-- Press Exit button in exit menu.

-- Turn off ignition.

NOTE:

The VAS 5051 or the VAS 5052 must remain connected for various tests, if necessary.
