Tire Pressure Monitoring Display, Perform Basic Setting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Tire Pressure Monitory System display is a component of ABS Control Module -J104- software.

ABS Control Module compares speed and rolling circumference of individual wheels with help of ABS sensors. If rolling circumference of a wheel changes, this is displayed via tire pressure control indicator. Rolling circumference of tire may be change if:

Tire inflation pressure is too low.
Tires have structural damage.
Vehicle is loaded on one side.
Wheels of one axle are loaded higher (e.g. when towing trailer or driving uphill and downhill).
Snow chains are installed.
Spare wheel is installed.
One wheel per axle was replaced.

"BLINKING LIGHT" means that no "INITIAL BASIC SETTING" was performed yet.
"STEADY LIGHT", in conjunction with warning buzzer, means "WARNING", a loss of pressure was detected, check tire inflation pressures, perform system basic setting.

NOTE:

Basic setting of Tire Pressure Monitoring Display Indicator Lamp -K220- should always only be performed, "after" tire inflation pressure values have first been corrected to the proper values.

If no pressure loss and no tire damage is detected after a tire pressure warning, the erroneous warning can be eliminated by a basic setting.

Tire Pressure Monitoring Display Indicator Lamp -K220- has a yellow indicator light in instrument cluster -arrow-.

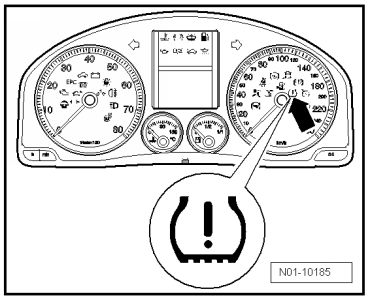

Fig 1: Identifying Tire Pressure Monitoring Display Indicator Light

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform the following adaptation after changing tire pressures or replacing one or more wheels:

-- Connect the Vehicle Diagnosis, Testing and Information System 5051 or a subsequent unit. Refer to VEHICLE TESTER, CONNECTING .

-- Switch ignition on.

-- Touch button/field on screen: Guided Fault Finding .

-- Select vehicle data.

All control modules present are interrogated.

-- Follow the instructions in "Guided Fault Finding" on the Vehicle Diagnosis, Testing and Information System 5051 or subsequent unit.
