Tie Rod Ends And Sealing Boots, Checking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

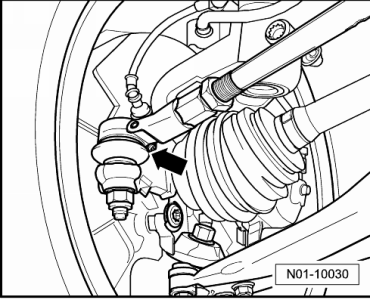

Fig 1: Identifying Tie Rod Joint Boots
GWWN01-10030Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With vehicle raised (wheels off ground) check tie rods by moving tie rods and wheels. Play: no play

-- Check attachments

-- Check track rod joint boots -arrow- for damage and proper seating.
