Lower Engine Cover, Removing And Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench V.A.G 1783

Fig 1: Identifying Torque Wrench V.A.G 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

Fig 2: Identifying Lower Engine Compartment Cover Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sheet metal screw (Qty. 8), tightening specification: 2 Nm
Combination screws (Qty. 3), tightening specification: 6 Nm

-- Remove bolts -arrows-.

-- Remove noise insulation.

Installing

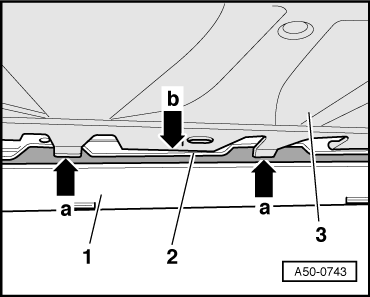

Fig 3: Identifying Lower Engine Compartment Cover Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide noise insulation -3- as shown into lower lock carrier -2-.

-- The narrow latches -arrow a- must be slid below or wide latches -arrow b- slid above the lock carrier edge -2-.

-- Retaining tabs must engage over wide tabs in lock carrier holes when doing so.

-- Tighten screws -arrows- to correct torque specification.
