Coolant Level, Checking and Adding Coolant Additive
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

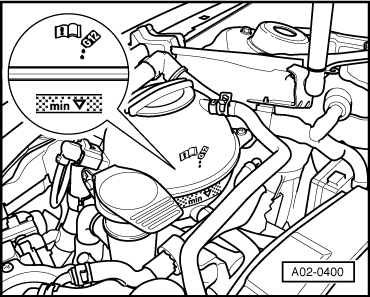

-- Check the coolant level in the reservoir when the engine is cold.
- Delivery inspection: Coolant level above the "MIN marking" -arrow-.
- Inspection service: Coolant level above the "MIN marking" -arrow-.
-- If coolant level is too low, fill with coolant mixture.
NOTE:
Determine cause of fluid loss, which cannot be attributed to normal use and repair.
