General Information: Labels

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

First Service Label, Applying at Delivery Inspection

Fig 1: Identifying Affix Sticker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Apply "Next service" label.

Applying First Service Label

-- Apply to the B-pillar on the driver side. The label is located on an instruction sheet attached to the front of the vehicle literature. Destroy the instruction after applying the label.

Applying Next Service Label

Fig 2: Identifying Next Service Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- "Next service" label : Check off an oil change service or an inspection service (next service due) and enter the date and the odometer reading.

Fig 3: Identifying Service Label On Drivers Side Door Beam (B-Pillar)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply the label to the B-pillar on the driver side.

Data Label, Applying in Customer Maintenance Booklet

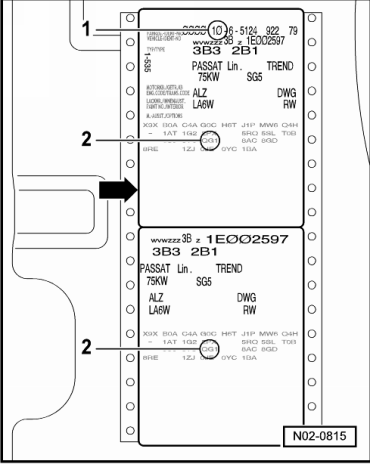

Fig 4: Locating Data Labels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply the upper of the two data labels -arrow-.

1 - Planning week

2 - PR Number
