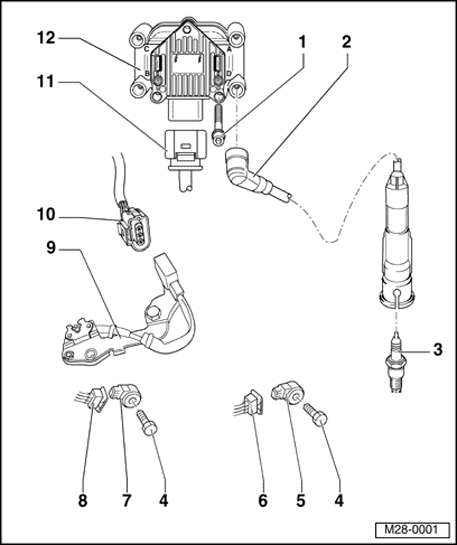

Engine code AEG

1 - 10 Nm

2 - Ignition cable

• 4 to 8 k Ω
• With suppression connector and spark plug connector
• Disconnect spark plug connector with T10112.

3 - Spark plug, 25 Nm

• Remove and install with 3122 B
• Type and electrode gap. Refer to Test data, spark plugs

4 - 20 Nm

• Tightening torque influences function of knock sensor

5 - Knock Sensor (KS) 2 -G66-

• Gold plated contacts

6 - Connector

• Brown, 2-pin
• For Knock Sensor (KS) 2 -G66-
• Gold plated contacts

7 - Knock Sensor (KS) 1 -G61-

• Gold plated contacts

8 - Connector

• Black, 2-pin
• For Knock Sensor (KS) 1 -G61-
• Gold plated contacts

9 - Camshaft Position (CMP) Sensor -G40-

• Location. Refer to Engine code AEG  item -29-

10 - Connector

• Black, 3-pin
• For Camshaft Position (CMP) Sensor -G40-

11 - Connector

• Black, 4-pin

12 - Ignition coils (-N-, -N128-)

• With ignition cable identification: A = Cylinder 1, B = Cylinder 2, C = Cylinder 3, D = Cylinder 4
• With Power output stage -N122-
• Location. Refer to Engine code AEG  item -11-
