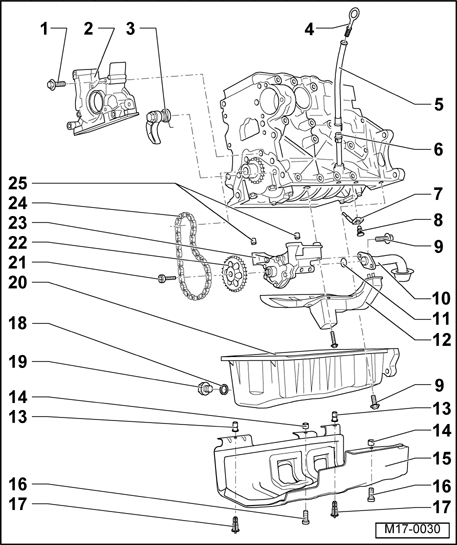

Engine code BBW, assembly overview : Notes

1 - 15 Nm

2 - Sealing flange

• Must be located on dowel sleeves
• Insert with silicone sealant D 176 404 A2. Refer to Front sealing flange, removing and installing
• Removing and installing. Refer to Front sealing flange, removing and installing
• Replacing crankshaft oil seal, poly V-belt pulley end. Refer to Crankshaft oil seal - belt pulley end, replacing

3 - Chain tensioner with tensioning rail, 15 Nm

• When installing, pretension spring first

4 - Dipstick

• Oil level must not exceed Max. mark!
• Markings. See Figure .

5 - Dipstick guide

• Fastened to intake manifold
• Pull off to extract oil

6 - Guide tube

7 - Oil spray jet

• For piston cooling

8 - Pressure relief valve, 27 Nm

9 - 15 Nm

10 - Suction line

• See Parts catalog
• Clean strainer if dirty

11 - O-ring

• Always replace

12 - Baffle plate

13 - Rubber bushing

• On cylinder block
• Replace if damaged

14 - Sleeves

15 - Oil pan guard

16 - 37 Nm

17 - Rivet spreader

• With spreader pin

18 - Seal

• Always replace

19 - Oil drain plug, 30 Nm

20 - Oil pan

• Clean sealing surface before installing
• Insert with silicone sealant D 176 404 A2. Refer to Oil pan, removing and installing
• Removing and installing. Refer to Oil pan, removing and installing

21 - 20 Nm

• Use counter support T10051 to loosen and tighten

22 - Chain sprocket for oil pump

• Observe installation position

23 - Oil pump

• With pressure relief valve of 12 bar
• Before installing, check that both dowel sleeves for centralizing oil pump/cylinder block are installed
• Replace if contact surfaces and gears are scored
• Removing and installing. Refer to Oil pump, removing and installing

24 - Chain

25 - Adjustment bushings
