Safety precautions

To prevent injuries to persons and/or damage to the fuel injection and ignition system, observe the following:

CAUTION:

When performing repair work, especially due to the confined conditions in the engine compartment, pay attention to the following:

Route all types of lines (e.g. for fuel, hydraulics, EVAP system, coolant, refrigerant, brake fluid and vacuum) as well as electrical wiring so that the original positions are restored.
Ensure sufficient clearance to all moving or hot components.

Do not touch or disconnect ignition wiring when the engine is running or being turned at starter speed.
The ignition must be switched off before connecting or disconnecting fuel injection or ignition system wiring or tester cables.
If the engine is to be turned at starter speed without starting:

Engine code AEG

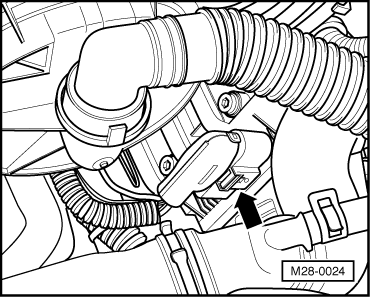

Fig 1: Identifying Ignition Coil With Final Output Stage Black 6-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect black 6-pin connector from ignition coil with final output stage (arrow).

Engine codes AVH, AZG, BBW, BEV

Fig 2: Identifying Ignition Coil With Final Output Stage Black 6-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect black 6-pin connector from ignition coil with final output stage (arrow).

Continued for all engines

Fig 3: Identifying Main Fuse Panel

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove fuse 32.

NOTE: Removing fuse 32 interrupts the voltage supply to the injectors.

Observe the following if test and measuring instruments are required during a road test:

Test and measuring instruments must be secured to rear seat and operated by an assistant from this location.

If test and measuring instruments are operated from front passenger's seat and the vehicle is involved in an accident, there is a possibility that the person sitting in this seat may receive serious injuries when the airbag is triggered.

Erase engine control module Diagnostic Trouble Code (DTC) memory on completion of work, this will remove any DTCs stored in memory caused when removing fuse. Refer to Engine control module Diagnostic Trouble Code (DTC) memory, interrogating and erasing .
Generate readiness code again in "Guided fault finding" after erasing DTC memory. Refer to Adapting components and functions Adapting components and functions.
