Engine codes AVH, AZG BEV

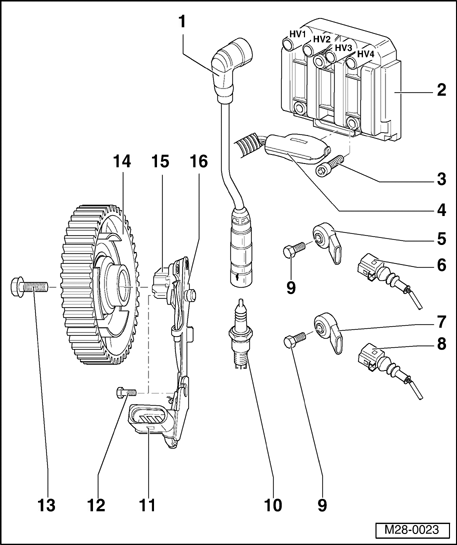

1 - Ignition cable

• 4 to 8 k Ω
• With suppression connector and spark plug connector
• Disconnect spark plug connector with T10112.

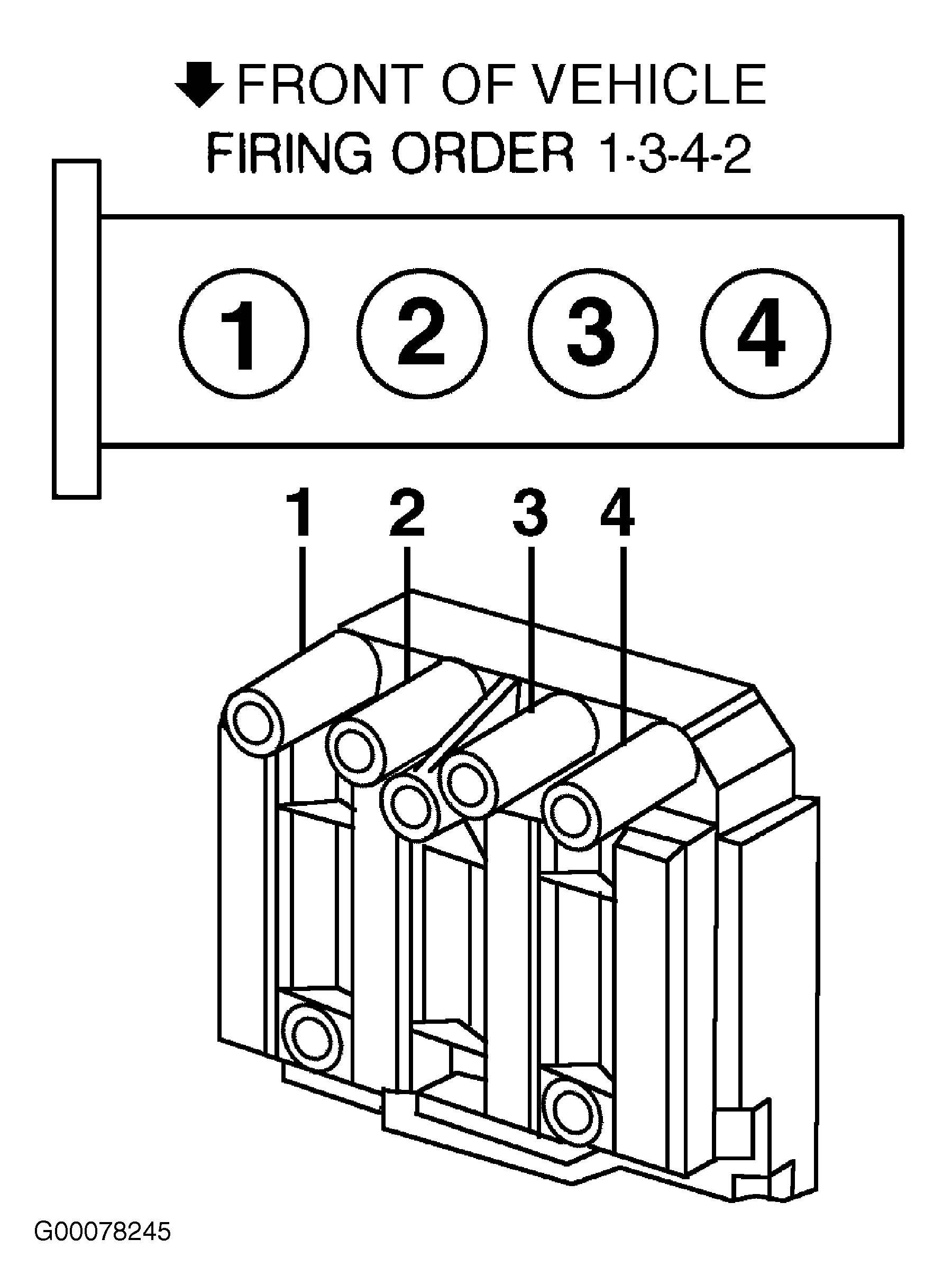

2 - Ignition coils with final output stages (-N70-, -N127-, -N291-, -N292-)

• Ignition cable connection:

HV1 = Cylinder 1

HV2 = Cylinder 2

HV3 = Cylinder 3

HV4 = Cylinder 4

3 - 10 Nm

4 - Connector

• 6-pin

5 - Knock Sensor (KS) 1 -G61-

• Gold plated contacts
• Location: Cylinder block intake side

6 - 2-pin connector

• For Knock Sensor (KS) 1 -G61-
• Gold plated contacts
• Do not interchange

7 - Knock Sensor (KS) 2 -G66-

• Gold plated contacts
• Location: Cylinder block intake side

8 - 2-pin Connector

• For Knock Sensor (KS) 2 -G66-
• Gold plated contacts
• Do not interchange

9 - 20 Nm

• Tightening torque influences function of knock sensor

10 - Spark plug, 25 Nm

• Type and electrode gap. Refer to Test data, spark plugs
• Remove and install with 3122 B

11 - Connector

• Gold plated contacts
• 3-pin

12 - 10 Nm

13 - 100 Nm

• Use counterhold 3415 when loosening and tightening.

14 - Camshaft pulley

• With screen for camshaft position sensor.
• Removing and installing. Refer to Camshaft, removing and installing

15 - Camshaft Position (CMP) Sensor -G40-

16 - Bracket

• For Camshaft position sensor.
