Engine code AAZ
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

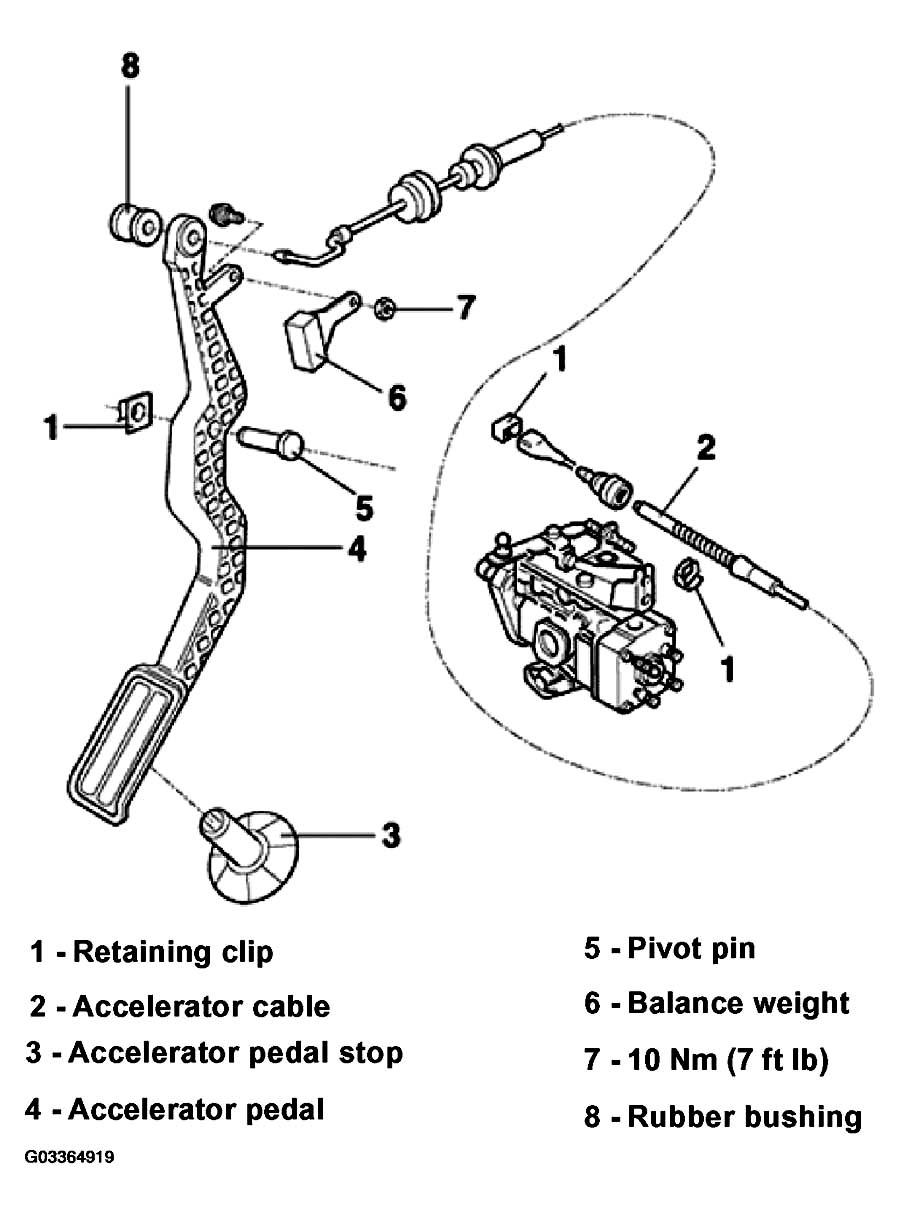

The following list pertains to Fig 1.
- Retaining clip
- Accelerator cable
- Adjust by moving position of securing clip (retainer) on outer cable grooves, see Adjusting Accelerator Cable
- Accelerator pedal stop
- Accelerator pedal
- Pivot pin
- Balance weight
- 10 Nm (7 ft lb)
- Rubber bushing
