Oil pan, removing and installing

Fig 1: Identifying Special Tools - Oil Pan, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and equipment

3185 Jointed wrench
T10058 Hex ball socket
V.A.G 1331 Torque wrench (5 to 50 Nm)
Hand drill with plastic brush attachment

Silicone sealing compound D 176 404 A2

Removing

Remove center and right side sound insulation:

Refer to BODY, FRONT

Engines with oil pan guard

Fig 2: Identifying Oil Pan Cover, Bolts, Sleeves & Spreader Rivet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts -2- and take sleeves -3- off front and rear parts of oil pan cover.
Press spreader pin out upward and remove spreader rivet -4-.
Remove oil pan cover -1-.

Continued for all engines

Drain engine oil.

NOTE: Observe waste disposal regulations!

Remove bolts from oil pan.

NOTE: Loosen bolts on flywheel end of oil pan with jointed wrench 3185 and remove with socket T10058.

Remove oil pan.

NOTE: It may be necessary to release the pan with light blows from a rubber headed hammer.

Remove sealant residue from cylinder block with a flat scraper.

Fig 3: Removing Sealant Residue From Oil Pan With A Rotating Brush

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove sealant residue from oil pan with a rotating brush, e.g. a hand drill with a plastic brush attachment (wear protective goggles).

Clean sealing surfaces. They must be free of oil and grease.

Installing

NOTE:

Observe the use by date of the sealant.
The oil pan must be installed within 5 minutes of applying silicone sealing compound.

Fig 4: Cutting Off Tube Nozzle & Applying Silicone Sealing Compound To Oil Pan Sealing Surface

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Cut off tube nozzle at front marking (nozzle approx. 3 mm diameter).
Apply silicone sealing compound, as shown, to clean oil pan sealing surface. Sealing compound bead must be:

2 to 3 mm thick

and run on inside of bolt holes (arrows)

NOTE: The sealing compound bead must not be thicker, otherwise excess sealing compound will enter the oil pan and may block the oil suction pipe strainer.

Fig 5: Applying Sealant To Inside Path Of Bolt Holes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply sealing compound bead carefully to areas marked by (arrows).
Install oil pan immediately and tighten bolts as follows:

NOTE:

When installing the oil pan on an engine which is removed from the vehicle, ensure that the oil pan is flush with the cylinder block on the flywheel end.
The sealant must be allowed to cure for approx. 30 minutes after installing the pan. After this time the engine may be filled with engine oil.

1 - Tighten all oil pan/cylinder block bolts lightly using a diagonal sequence.

2 - Tighten three oil pan/transmission bolts lightly.

3 - Tighten all oil pan/cylinder block bolts lightly using a diagonal sequence again.

4 - Tighten oil pan/transmission bolts to 45 Nm.

5 - Tighten all oil pan/cylinder block bolts to 15 Nm using a diagonal sequence.

Oil pan, lower part

NOTE:

Observe the use by date of the sealant.
The lower part of the oil pan must be installed within 5 minutes of applying silicone sealing compound.

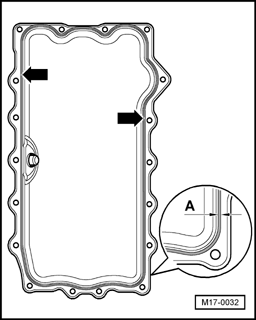

Fig 6: Identifying Silicone Path And Dimensions On Lower Part Of Oil Pan

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply silicone sealing compound AMV 176 501 as shown, to clean sealing surface of lower part of oil pan.

Sealing compound bead must be: A = 2 to 3 mm thick
Run sealing compound bead along inner side of bolt holes (arrows)

NOTE: The sealing compound bead must not be thicker, otherwise excess sealing compound will enter the oil pan and may block the oil suction pipe strainer.

Engines with oil pan guard

NOTE:

Check condition of rubber bushings in cylinder block (for mounting spreader rivets) before installing oil pan cover.
Before bolts are reinstalled, clean threads and apply sealant D 000 600 A2.

Fig 7: Identifying Oil Pan Cover, Bolts, Sleeves & Spreader Rivet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert spreader pin flush with spreader rivet -4- and install in oil pan cover -1-.
Tighten bolts -2- in front and rear ends of oil pan to 37 Nm.

Continued for all engines

The rest of the assembly is basically in reverse order to the removal sequence.
