Cooling System Components, Removing And Installing
>>
Radiator Fan (Engines With Engine Codes: AEG, AVH And AZG), Checking
>>
Test Requirements
Test Requirements
Main fuses must be OK
Coolant Fan Control (FC) Thermal Switch -F18- OK

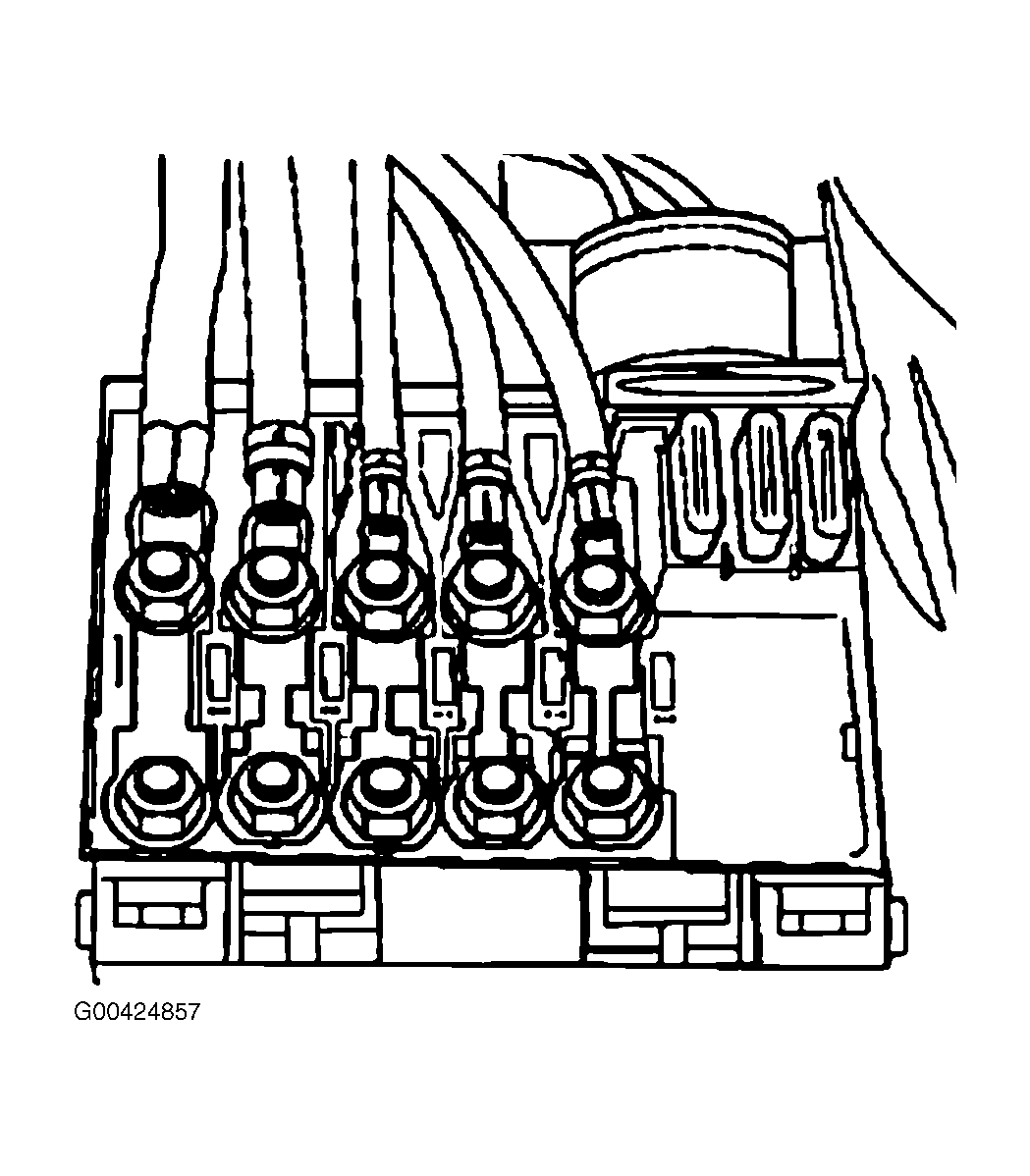

Fig 1: Identifying Main Fuses
Courtesy of VOLKSWAGEN UNITED STATES, INC.
