Radiator And Cooling Fan Removing And Installing: Removing

• Drain coolant. See Draining .

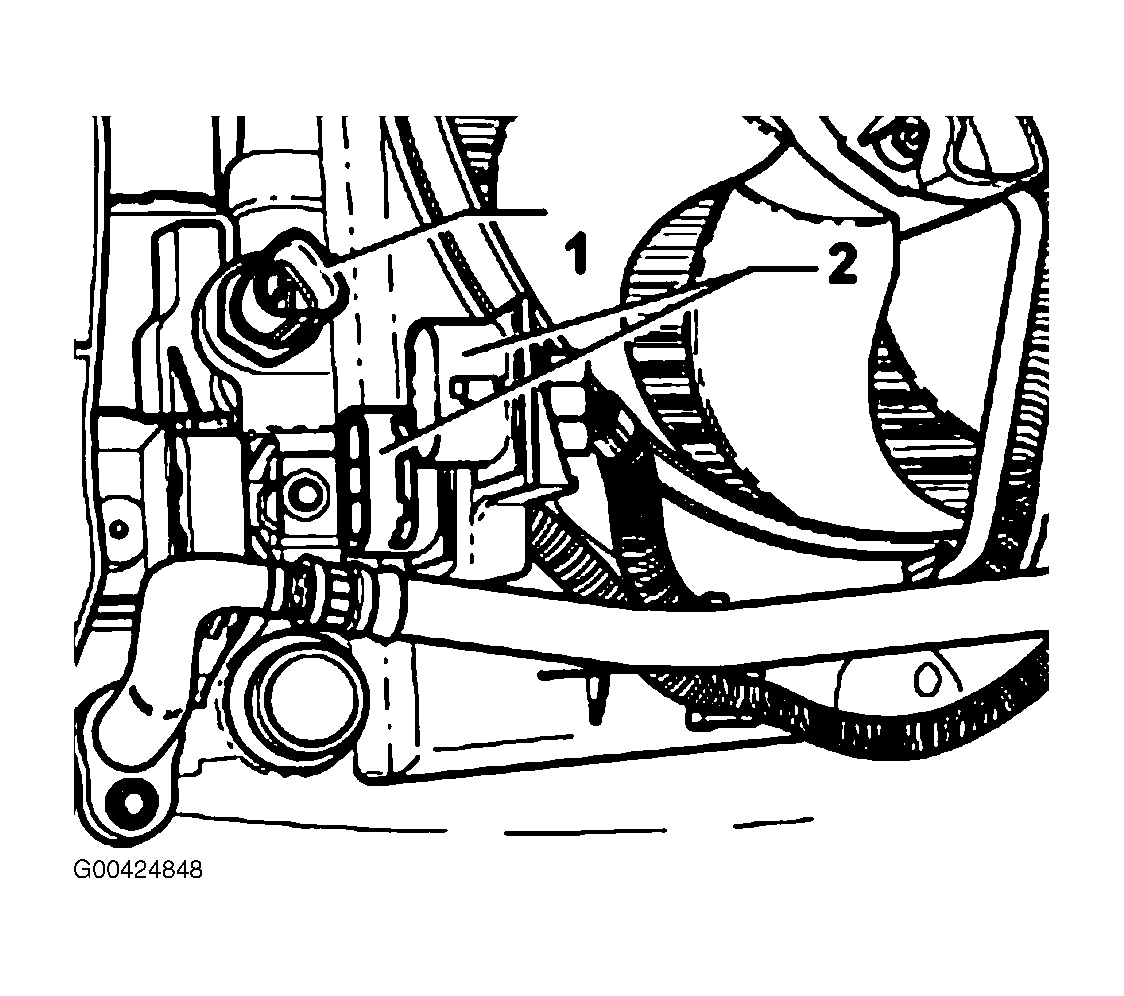

• Disconnect connectors from thermal switch -1- and coolant fan -2-.
Fig 1: Locating Thermal Switch & Coolant Fan Connect
Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Remove front bumper. See BUMPER COVER, REMOVING AND INSTALLING
• Bring lock carrier into service position: See LOCK CARRIER SERVICE POSITION
• Pull coolant hoses quick release couplings off radiator.
• Remove securing screws for headlight and disconnect connections. See HEADLIGHTS - GOLF or HEADLIGHTS - JETTA

Models with an air conditioning system

• Observe additional information and removal work

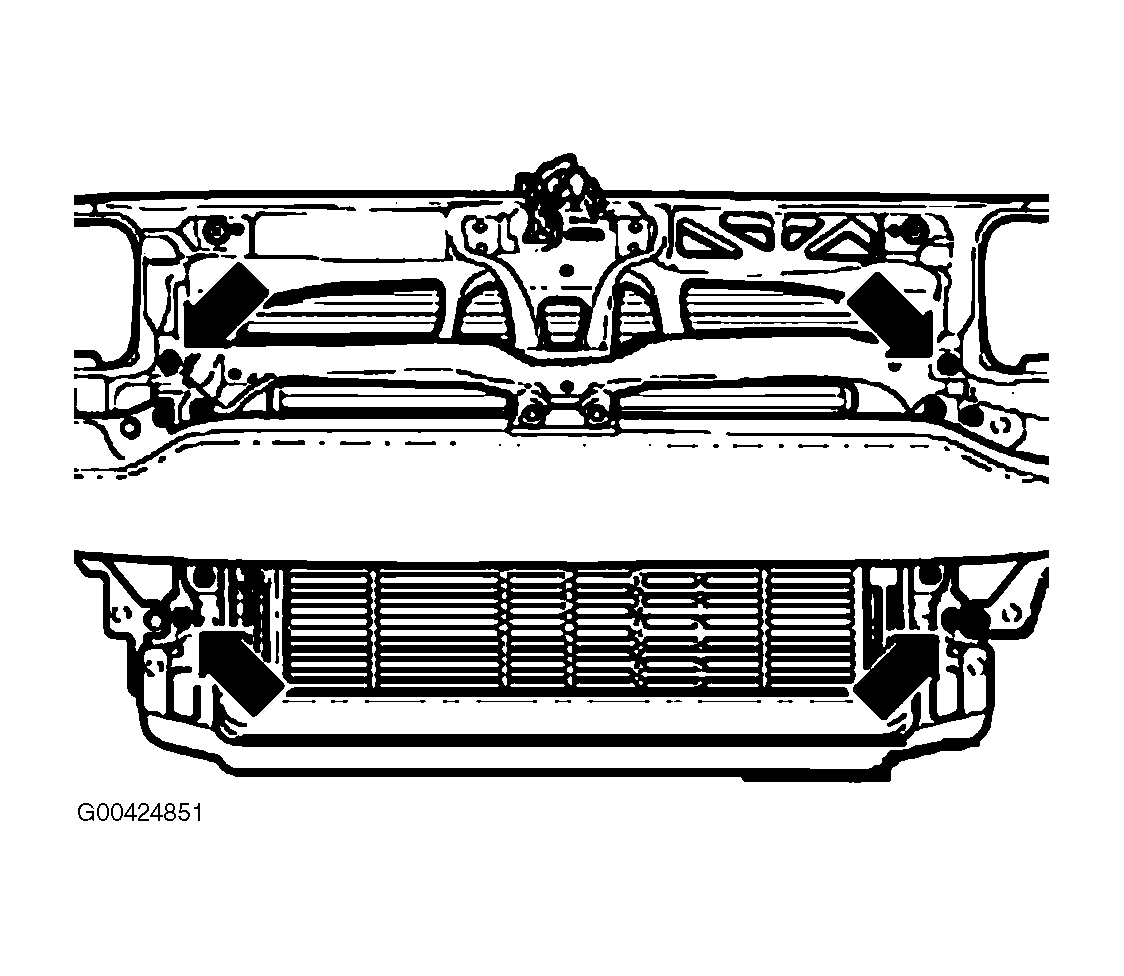

• Remove the four bolts for the air conditioning system condenser.
Fig 2: Locating Air Conditioning System Condenser Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

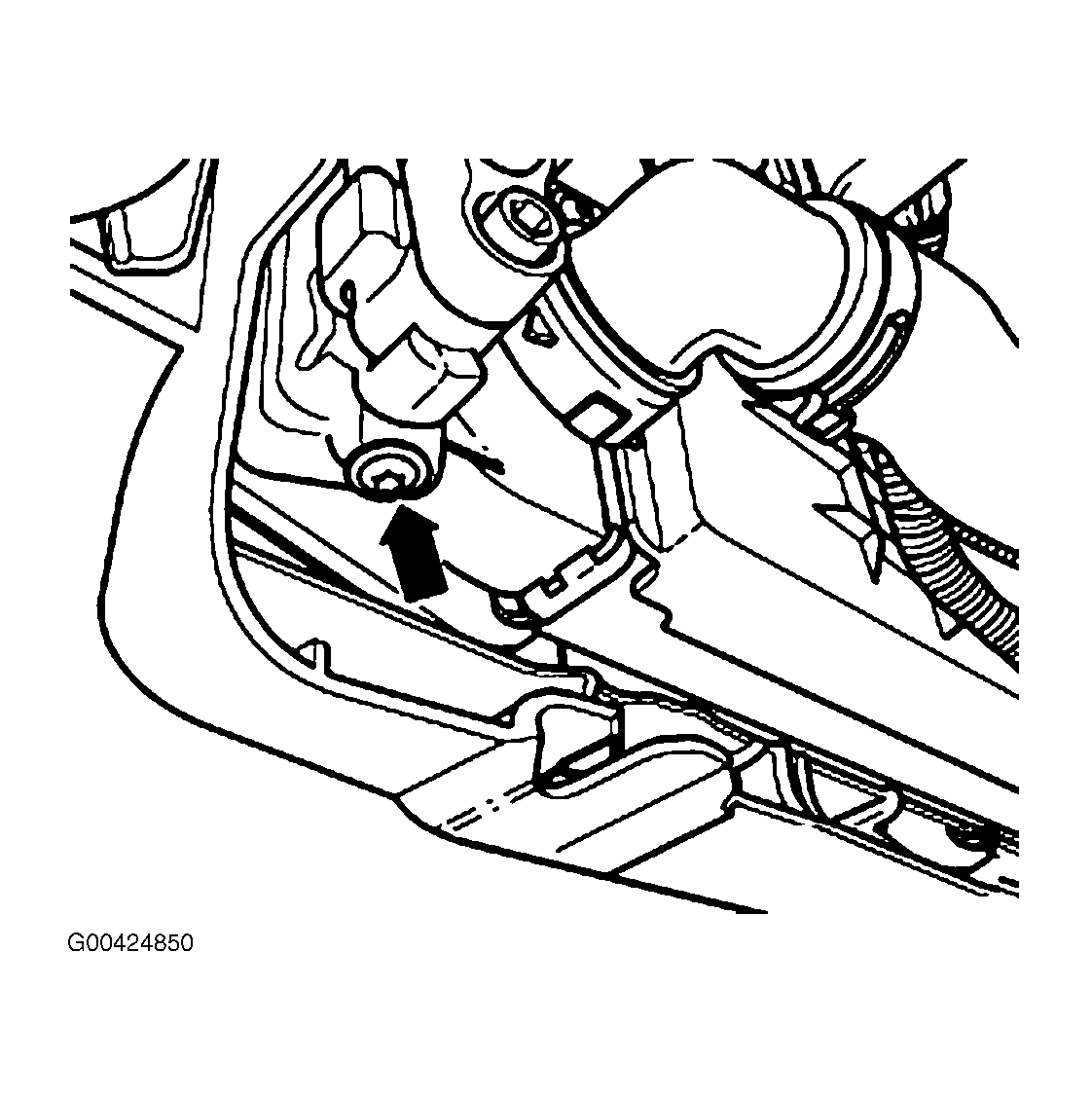

• Remove bolt (arrow) on left of radiator for condenser bracket.
Fig 3: Locating Condenser Bracket Left Of Radiator
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Continue for all models

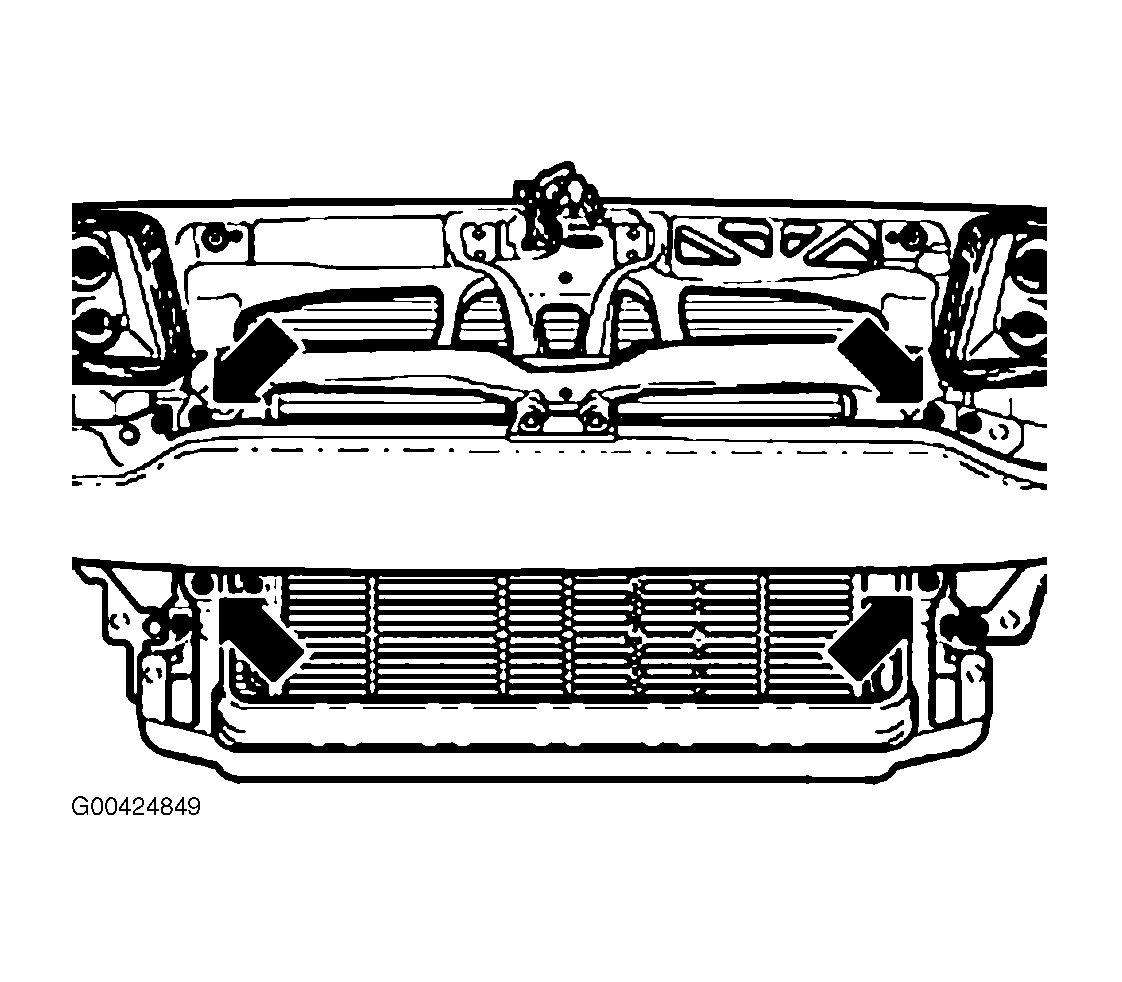

• Remove radiator securing bolts and take radiator with fan out downward.
Fig 4: Locating Radiator Securing Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
