Engines: AEG, APK And AQY

NOTE: The following list refers to items in Fig 1.
  1. Expansion tank
  2. Intake manifold
  3. Throttle valve control module
  4. Union
  5. Heating system heat exchanger
  6. Coolant pipe
  7. ATF cooler
    • Only on vehicles with automatic transmission
  8. Upper coolant hose
  9. Lower coolant hose
  10. Radiator
  11. Oil cooler
  12. Coolant pump/coolant thermostat
  13. Cylinder head/cylinder block

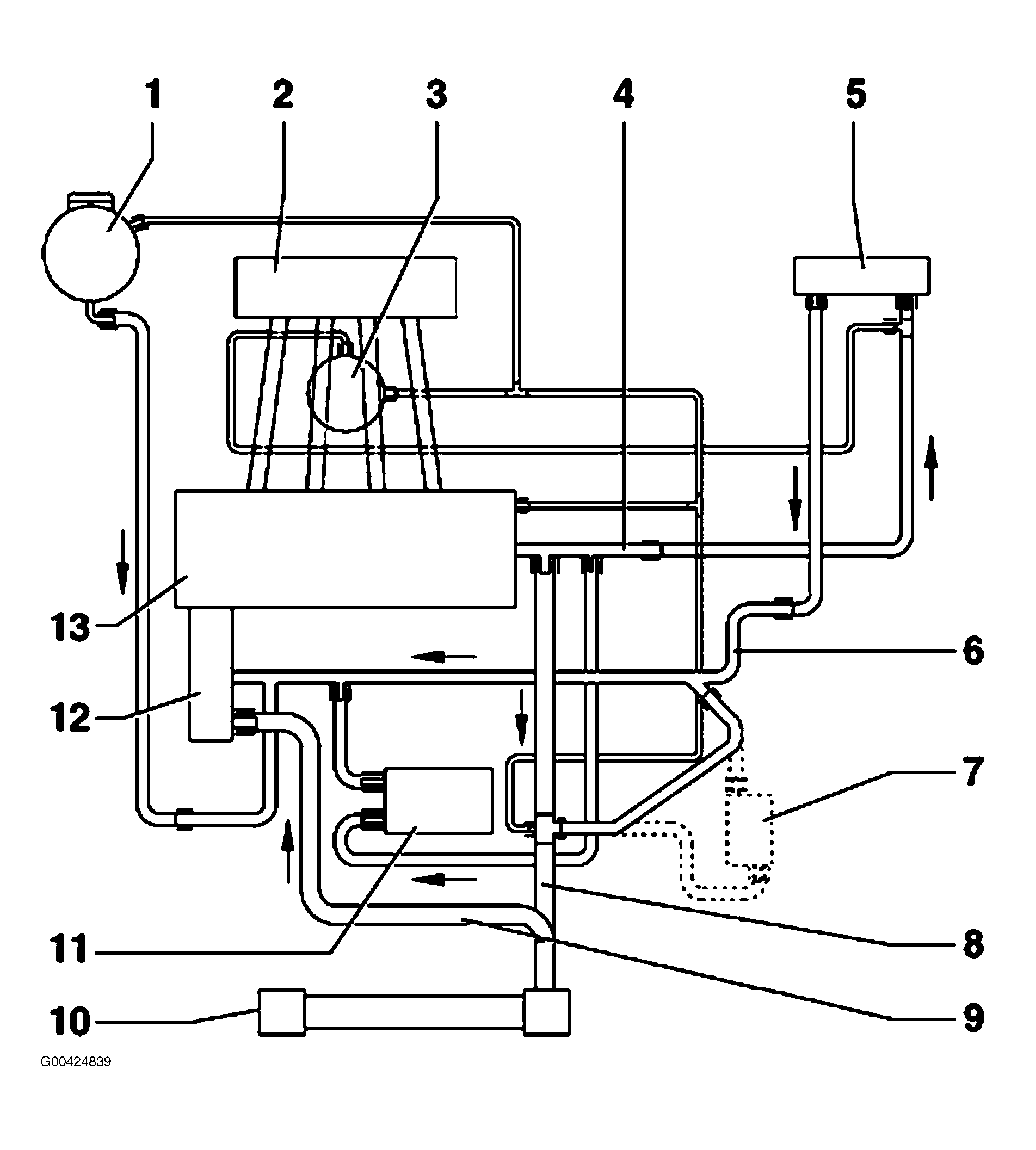

Fig 1: Coolant Hose Connection Diagram (AEG, APK & AQY)
G00424839Courtesy of VOLKSWAGEN UNITED STATES, INC.
