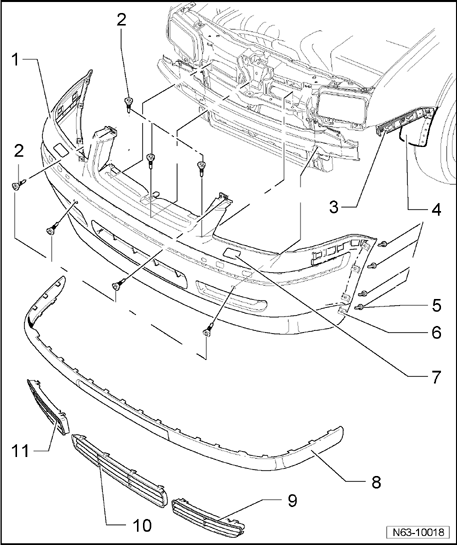

Bumper cover, assembly overview
NOTE:
- Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.
1 - Bumper cover
- Material - PP/EPDM
- Removing. Refer to Bumper cover, removing and installing
2 - Bolt
- Qty. 7
- 6.6 Nm
3 - Guide piece
- To remove and install, pull out/slide in bumper cover parallel out of guide pieces (left and right sides).
4 - Wheelhousing liner
5 - Screw
- Qty. 8 for common models Golf/Jetta
- 1.5 Nm
- Qty. 10 for Jetta GLI Sport
6 - Speed nut
- Qty. 8 for common models Golf/Jetta
- Qty. 10 for Jetta GLI Sport
7 - Cover for headlight cleaning system
- Cover is part of headlight cleaning system
- For special models
8 - Spoiler
- For common models Golf/Jetta: clipped in on bumper cover
- For Jetta GLI Sport: delivered as by-pack
9 - Air guide grille, left
- Clipped in on bumper cover
10 - Air guide grille, center
- Clipped in on bumper cover
11 - Air guide grille, right
- Clipped in on bumper cover
