Rear Wheel Housing Liner

NOTE:

Removing and installing is described only for the left wheel housing liner. Removing and installing right wheel housing liner is similar

Removing

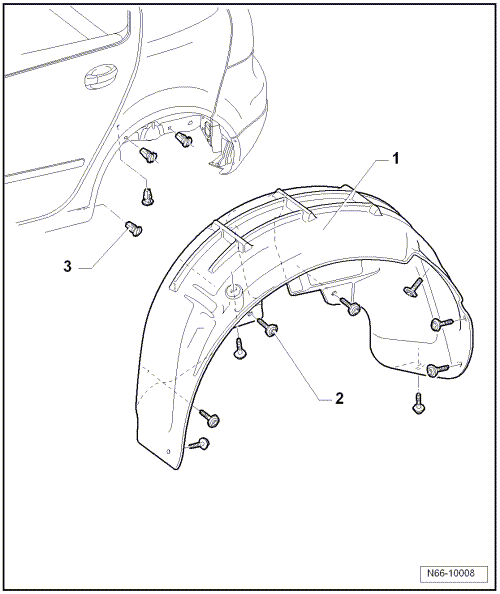

Fig 1: Rear Wheel Housing Liner, Assembly Overview
GWWN66-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unbolt wheel [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BGP, BPY, AWP, BGQ, CBTA, CBUA, CCTA, CBFA] Removal and Installation

-- Remove bolts -2- (Qty. 9).

-- Pull off wheel housing liner -1-.

Installing

To install, perform the steps used for removal in reverse order.
