Air Bag, Driver Side, Golf From My 09
Removal and installation of airbag unit is described for multi-function steering wheel.
The screwdriver mentioned in the following should be about 175 mm long and have a blade width of 7 mm.
Removing
- Read the Safety Instructions for working with airbags, belt tensioners and battery cut-out units. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .
- Note the special instructions for the driver and passenger airbags. Refer to DRIVER AND PASSENGER AIRBAG, SPECIAL NOTES .
-- Disconnect the battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BGP, BPY, BGQ, CBTA, CBUA, CCTA, CBFA] Removal and Installation
-- Adjust steering wheel height to the highest position.
-- Adjust steering wheel depth (reach) so it is in the fully extended position.

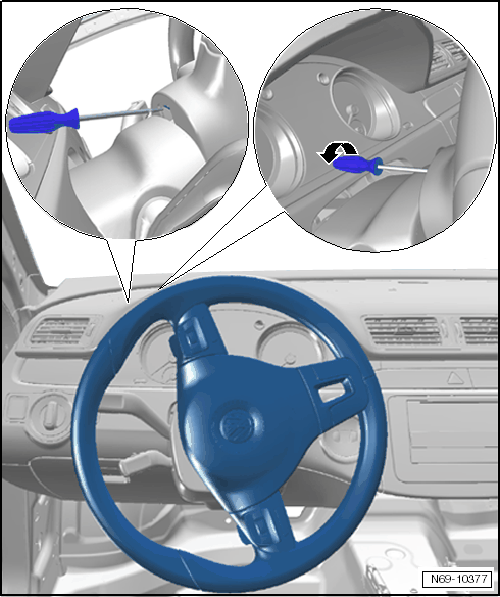

-- Turn steering wheel into the position depicted.
-- Insert a screwdriver into hole on rear side of steering wheel until it stops (approx. 8 mm).
-- Turn the screwdriver in the direction of passenger side door -arrow- ; this unlocks the airbag unit locking frame on the right side of the steering wheel.
If it is not a multifunction steering wheel, then the airbag must be removed from the steering wheel bezel on the upper edge after actuating the lock.
-- Turn steering wheel 180° and disengage airbag unit locking mechanism on left side of steering wheel as described.
If it is not a multifunction steering wheel, then the airbag must be removed from the steering wheel bezel on the upper edge after actuating the lock.
-- Turn steering wheel back 90° into center position.
-- Remove airbag unit from steering wheel.
Electrostatic discharges can lead to unintended deployment of the airbag. Therefore, the technician must discharge static electricity from the body before disconnecting the ignition and ground wiring. This is done, for example, by briefly touching the vehicle body or the door striker pin.

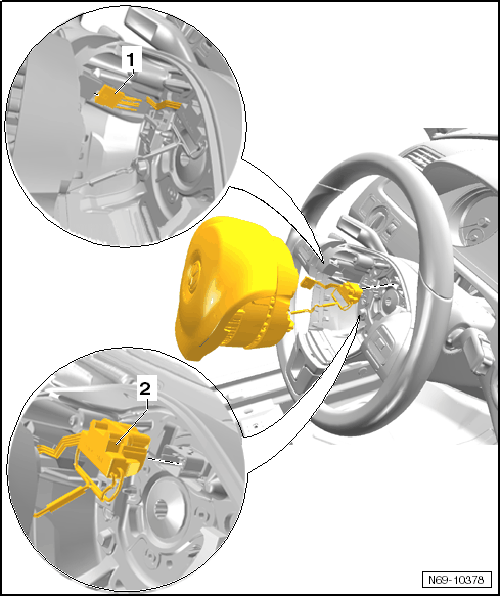

-- Disconnect the airbag connector -2-.
-- Disconnect the connector -1-. This is necessary only on the multifunction steering wheel.
Installing
-- Connect the airbag connector -2- into the connector coupling. The airbag connector must engage audibly.
-- Connect the connector -1- into the connector coupling. This is necessary only on the multifunction steering wheel.
-- Push airbag unit into steering wheel.
-- Check whether the airbag unit is engaged on the left and right side of the steering wheel.
-- Switch on ignition.
Make sure that no persons are in the vehicle.
-- Connect the battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BGP, BPY, BGQ, CBTA, CBUA, CCTA, CBFA] Removal and Installation
