Rear Outer Seat Belts Assembly Overview

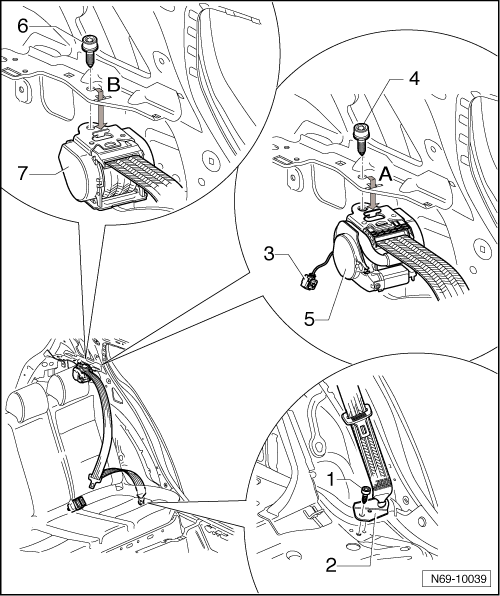

Fig 1: Rear Outer Seatbelts Removing/Installing Components
GWWN69-10039Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
  2. Belt anchor
  3. Wiring harness
  4. Bolt
    • 40 Nm
  5. Automatic belt retractor with belt tensioner
  6. Bolt
    • 40 Nm
  7. Automatic belt retractor without belt tensioner
