Rear Center Three-Point Seat Belt Assembly Overview

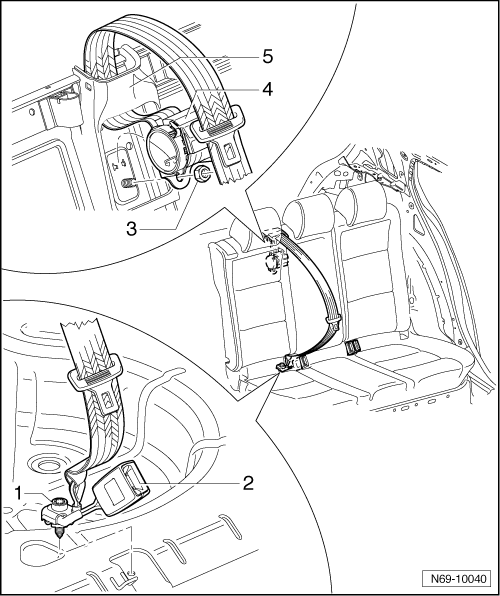

Fig 1: Rear Center 3-Point Seatbelt Removing/Installing Components
GWWN69-10040Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
  2. Belt latch
  3. Hex nut
    • 40 Nm
  4. Automatic belt retractor
  5. Console
