Flange Shaft Overview

The flange shaft is disassembled only for cleaning.

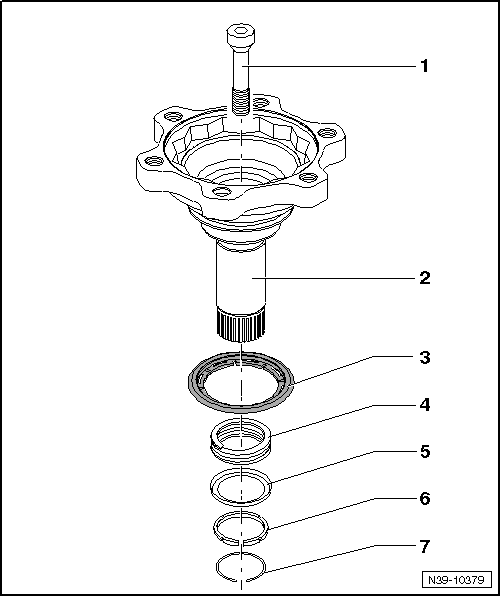

Fig 1: Identifying Assembly Overview: Flange Shaft

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1. Bolt
   • 30 Nm
   • Always replace
   • Do not remove the bolts on both sides at the same time.
2. Flange Shaft
3. Protection Ring
   • Removing and installing, refer to Fig 2.
4. Pressure Spring
5. Thrust Washer
6. Tapered Ring
7. Lock Ring

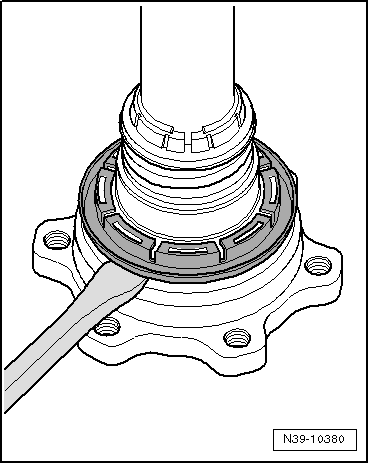

Fig 2: Identifying Flange Shaft Protection Ring, Removing and Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Press the protection ring on by hand all the way.
