Special tools and workshop equipment required

Hose Clamps up to 40 mm -3093-
Engine Sling -2024 A-
Shackle 10-222 A/12
Transmission Support Jig -3336-
Tensioning Straps -T10038-
Hooks -3004-
Vehicle Diagnosis, Testing and Information System -VAS 5051B-

Fig 1: Identifying VAS 5051
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Used Oil Collecting and Extracting Device -V.A.G 1782-

Fig 2: Identifying Oil Extractor V.A.G 1782
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Adapter for Oil Filling -VAS 6262 A-

Fig 3: Identifying Adapter For Oil Filling VAS 6262 A
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Torque Wrench (5-50 Nm) -V.A.G 1331-

Fig 4: Identifying Torque Wrench (5 To 50 Nm) VAG 1331
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Sleeve -VW 423-

Fig 5: Identifying Sleeve VW 423
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Pulling Hook -T20143-

Fig 6: Identifying Extractor Hook T20143
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Release Tool -T10465-

Fig 7: Identifying Release Tool T10465
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Assembly Tool -T10071-

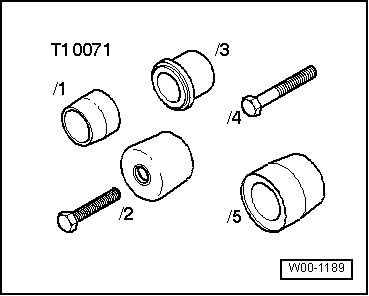

Fig 8: Identifying Alignment Fixture T10071
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Bracket -T10338-

Fig 9: Identifying Bracket T10338
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Adjustment Plate -3282/42A-

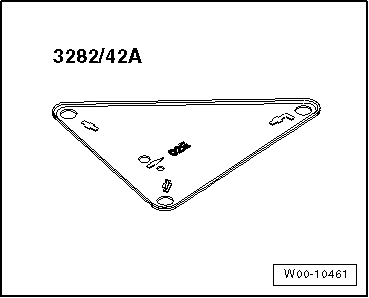

Fig 10: Identifying Adjustment Plate 3282/42 A
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Adapter 10-222 A/18

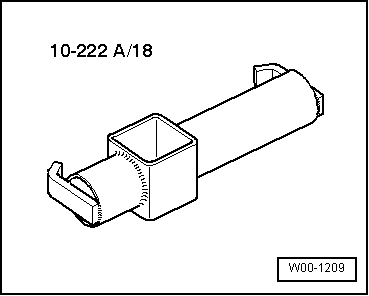

Fig 11: Identifying Adapter 10 - 222 A/18
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Socket and Extended Bit -T10107-

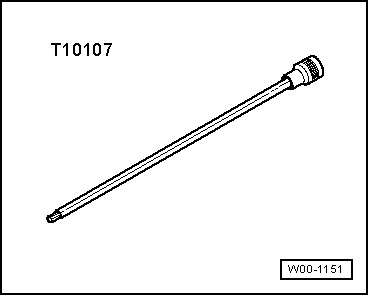

Fig 12: Identifying Multi-Point Socket T10107 A
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Identifying Special Tools -- Transmission (Passat 2006 With 3.2L V6 Engine (All Wheel Drive)), Removing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

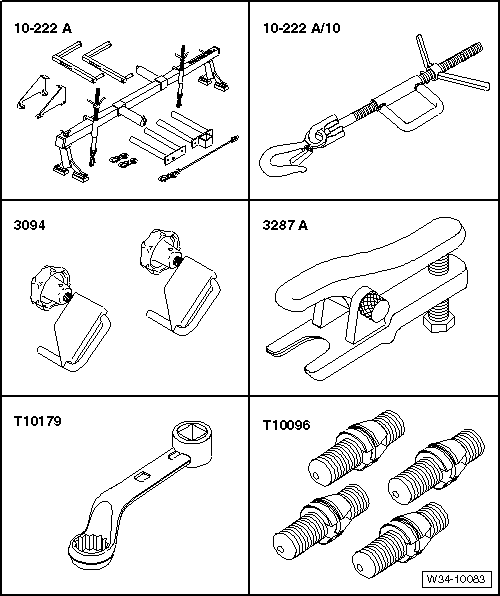

Special tools and workshop equipment required

Engine Support Bridge 10 - 222 A
Bracket with Spindle and Hook 10 - 222 A/10
Hose Clamps up to 25 mm Dia. -3094-
Ball Joint Puller -3287 A-
Insert Tool 18 mm -T10179-
Locating Pins -T10096-
