Special tools and workshop equipment required

Pin -3282/29-
Adjustment Plate -3282/59-
Engine-/Gearbox Jack -V.A.G 1383 A-
Engine Sling -2024 A-
Shackle 10-222 A/12
Transmission Support Jig -3336-
Tensioning Straps -T10038-
Bracket with Spindle and Hook 10-222 A/10
Vehicle Diagnosis, Testing and Information System -VAS 5051B-

Fig 1: Identifying VAS 5051
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Used Oil Collecting and Extracting Device -V.A.G 1782-

Fig 2: Identifying Oil Extractor V.A.G 1782
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Adapter for Oil Filling -VAS 6262 A-

Fig 3: Identifying Adapter For Oil Filling VAS 6262 A
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Torque Wrench (5-50 Nm) -V.A.G 1331-

Fig 4: Identifying Torque Wrench (5 To 50 Nm) VAG 1331
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Hose Clamps up to 25 mm Dia. -3094-

Fig 5: Identifying 3094 Hose Clamps
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Sleeve -VW 423-

Fig 6: Identifying Sleeve VW 423
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Pulling Hook -T20143-

Fig 7: Identifying Extractor Hook T20143
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Release Tool -T10465-

Fig 8: Identifying Release Tool T10465
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Locating Pins -T10096-

Fig 9: Locating Fixture T10096
Courtesy of VOLKSWAGEN UNITED STATES, INC.

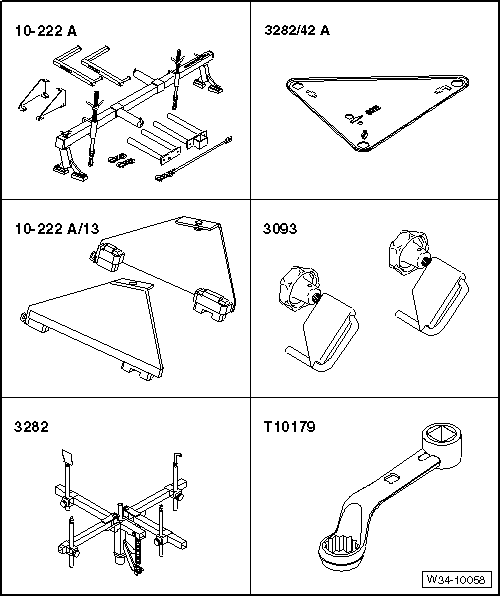

Fig 10: Identifying Special Tools -- Transmission (Rabbit/GTI 2006 With 2.0L 147 kW Gasoline Engine), Removing

Courtesy of VOLKSWAGEN UNITED STATES, INC.
