Special Tools

Special tools and workshop equipment required

• Oil Drain Adapter T40057
  Fig 1: Identifying Oil Drain Adapter T40057

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Test Adapter F/VAS 5051 DSO (2-pin) VAS 5256

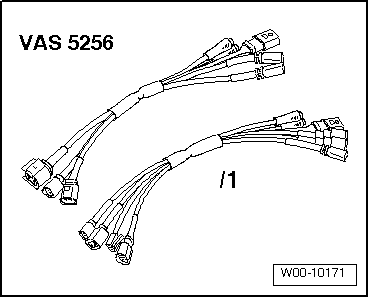

  Fig 2: Test Adapter F/VAS 5051 DSO (2-pin) VAS 5256

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Hand held Multi-Meter V.A.G 1526 D
  Fig 3: Hand held Multi-Meter V.A.G 1526 D

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Connecting Pin T10027
  Fig 4: Connecting Pin T10027

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Socket 24 mm and Jointed Extension T40175
  Fig 5: Socket 24 mm and Jointed Extension T40175

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Identifying Special Tools -- Oil Pressure And Oil Pressure Switch, Checking

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• Oil Pressure Gauge V.A.G 1342
• Voltage Tester V.A.G 1527 B
• Connector Test Set V.A.G 1594 C

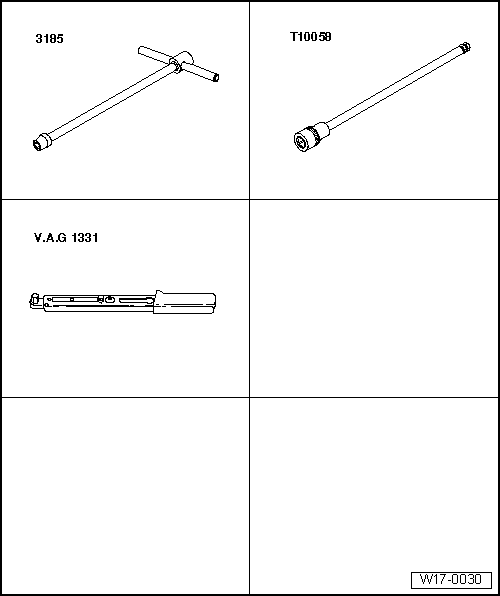

Fig 7: Identifying Special Tools -- Oil Pan, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• T Bar and Socket 10 mm 3185
• Hex Ball Socket T10058
• Torque Wrench (5-50 Nm) V.A.G 1331
