Oil Pressure Switch -F1-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

-- Remove the noise insulation. Refer to Description and Operation .

-- Remove the left charge air hose -1 and 2-.

Fig 1: Left Charge Air Hose

Courtesy of VOLKSWAGEN UNITED STATES, INC.

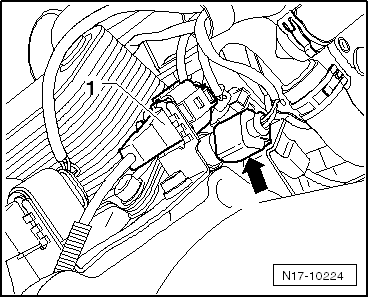

-- Remove the harness connector -1- from the bracket and disconnect the connector -arrow- from the oil pressure switch.

Fig 2: Oil Pressure Switch Harness Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Vehicles with a 1 Pin Switch:

-- Remove the bolt -B- from the ground cable (ignore the arrows).

Fig 3: Disconnecting Connector From Oil Pressure Switch And Removing Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Continuation for all Vehicles:

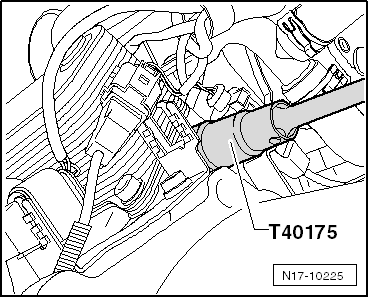

-- Remove the oil pressure switch using the socket 24 mm and jointed extension T40175.

Fig 4: Removing Oil Pressure Switch Using Socket And Jointed Extension T40175

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

-- Install the oil pressure switch by hand and tighten it to 20 Nm.

NOTE:

In the case of a 1 pin switch, check whether the ground wire is connected.

Further installation is in the reverse order of removal.
