Main Fuse Box Overview
WARNING: This page is about a different variant/trim than selected.

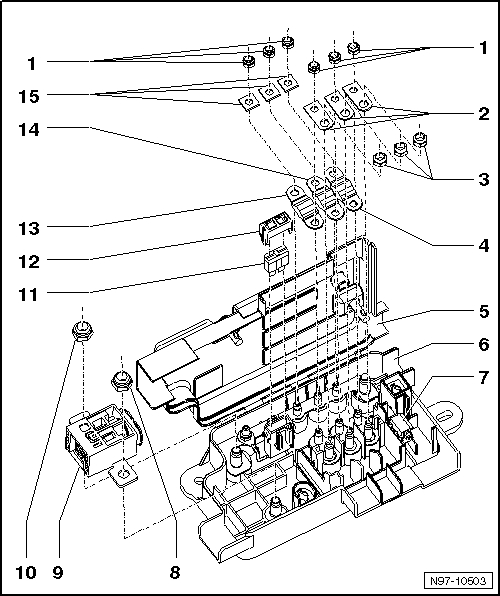

The starter battery is installed in the luggage compartment in the Golf R32. This requires an auxiliary main fuse box with battery cut-off.
NOTE:
Additional information:
- Nuts M5
- 5 Nm
- Power Bridges
- Power bridge to connect fuse and wire connection.
- Nuts M6
- 9 Nm
- Fuse 3 - Terminal 30 -S206-
- 30 amperes
- Cover
- Main fuse box cover
- Housing
- Main fuse box housing
- Connector
- Nut M8
- 15 Nm
- Battery Interrupt Igniter -N253-
- Removing and installing, refer to BATTERY INTERRUPT IGNITER -N253- .
- Nut M8
- 15 Nm
- Self-locking
- Fuse 4 - Terminal 30 -S207-
- 5 amperes
- Cover
- Fuse 4 - terminal 30 -S207- cover
- Fuse 1 - Terminal 30 -S204-
- 125 amperes
- Fuse 2 - Terminal 30 -S205-
- 80 amperes
- Support Panel
- Fuse support panel
NOTE:
If battery cut-off is deployed, replace the battery interrupt igniter -N253-. Refer to BATTERY INTERRUPT IGNITER -N253- .
