Special Tools

Special tools and workshop equipment required

• Thrust Disc VW 412
• Thrust Piece 40-105
• Thrust Pad 3005
• Tube 60 mm Dia.VW 415 A

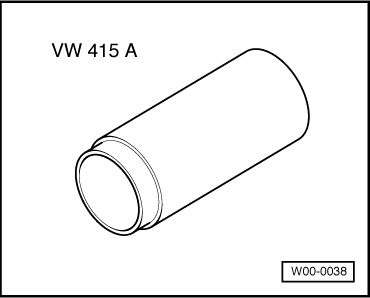

  Fig 1: Identifying Tube VW 415 A

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Identifying Special Tools - Differential, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• Transmission Support VW 353
• Magnetic Plate 50 mm Dia.VW 385/17
• Dial Gauge Holder VW 387
• Thrust Plate VW 402
• Punch VW 408 A
• Thrust Pad 3005

Fig 3: Identifying Special Tools - Oil Seal For Left Flanged Shaft, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• Slide Hammer-Complete Set VW 771
• Additional Part for VW 771 VW 771/37
• Thrust Piece 3305
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332

Fig 4: Identifying Special Tools -- Differential, Disassembling And Assembling (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• Tube 3259
• Tube 3296
• Press Tool 3345
• Tapered Roller Bearing Puller V.A.G 1582
• Attachment to V.A.G 1582 V.A.G 1582/6A
• -1- Kukko Extractor 46-58 mm 21/7
• -2- Kukko Puller 65-160 mm 18/1
• -3- Kukko Separating Tool 12-75 mm 17/1
• -4- Kukko Support 22/2
