Special Tools

Special tools and workshop equipment required

• Engine Support Bridge 10-222 A
• Adapter10-222 A/13
• Bracket with Spindle and Hook 10-222 A/10
• Engine/Transmission Jack V.A.G 1383 A
• Sleeve 3160
• Bracket 30-211A
• Thrust Piece T10042
• Thrust Piece T40008
• Hot Air Blower V.A.G 1416
• Extractor Lever VW 681
• Thrust Piece T10143
• Press Tool for Shaft Seal T10180
• Driving Sleeve VW 244B
• Thrust Plate VW 401
• Thrust Plate VW 402
• Punch VW 407
• Tube 37 mm Dia. VW 416 B
• Guide Piece VW 436 A
• Guide Pin VW 439
• Holding Fixture VW 801
• Guide Piece 10-15
• Thrust Pad 3124
• Bearing Driver 3264
• Subframe Support Assem. Device 3290
• Drift T10168
• Thrust Piece T10203
• Punch VW 411
• Tube Trans. Drive Shaft VW 426
• Thrust Pad 16.5/28 mm Dia. VW 431
• Triple Square Socket Driver 3357
  Fig 1: 3357 Triple Square Socket Driver

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Connecting Pin T10027 A
  Fig 2: Identifying Connecting Pin T10027 A

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Trim Removal Wedge 3409
  Fig 3: 3409 Wedge

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Hose Clamp Pliers V.A.G 1275
  Fig 4: Identifying Hose Clamp Pliers V.A.G 1275

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Sleeve VW 423
  Fig 5: Identifying Sleeve VW 423

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Extractor Lever T20143/1
  Fig 6: Extractor Hook T20143

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Torque Wrench (40-200 Nm) V.A.G 1332
  Fig 7: Identifying Torque Wrench 40-200Nm VAG 1332

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Thrust Block T10083
  Fig 8: Identifying Pressing Support T10083

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Drift T10169 or T10362
  Fig 9: Identifying Drift T10362

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Socket and Extended Bit T10107 or T10107 A
  Fig 10: Identifying Multi-Point Socket T10107 A

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• -1- Kukko Extractor 14.5-18.5 mm 21/2
• -1- Kukko Extractor 23.5-30 mm 21/4
• -1- Kukko Puller 12-14.5 mm 21/1
• -1- Kukko Extractor 18.5-23.5 mm 21/3
• -3- Kukko Separating Tool 5-60 mm 17/0
• -4- Kukko Support 22/2
• -4- Kukko Support 22/1
  Fig 11: Identifying Kukko Tools

  Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Identifying Special Tools -- Transmission (Rabbit/GTI), Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

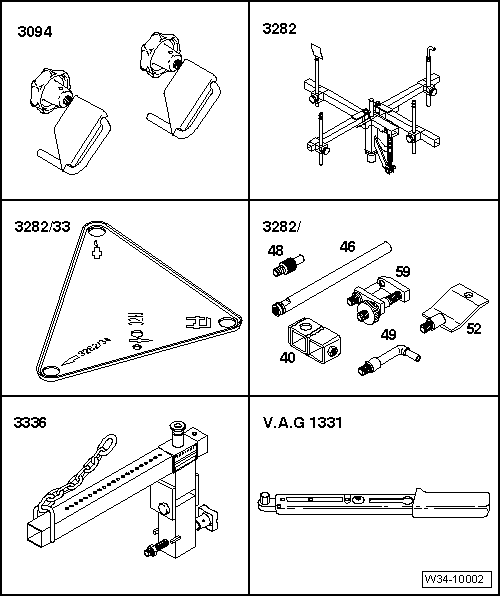

Special tools and workshop equipment required

• Hose Clamps up to 25 mm Dia. 3094
• Transmission Support 3282
• Adjustment Plate 3282/33
• Transmission support elements (determine when mounting the adjustment plate on the transmission support)
• Transmission Support Jig 3336
• Torque Wrench (5-50 Nm) V.A.G 1331

Fig 13: Identifying Special Tools -- Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

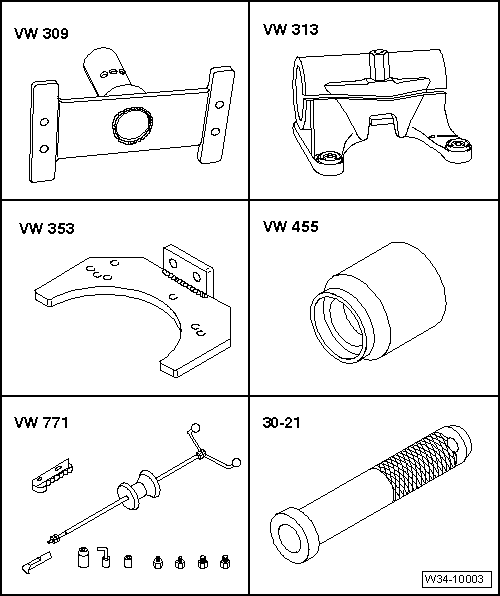

Special tools and workshop equipment required

• Holding Plate VW 309
• Holding Fixture VW 313
• Transmission Support VW 353
• Thrust Tube VW 455
• Slide Hammer-Complete Set VW 771
• Sleeve 30-21
