Light Alloy Wheels With Metal Valve Assembly Overview

WARNING: This page is about a different variant/trim than selected.

From MY 2005, hollow chamber wheels have been installed in some equipment versions. Metal valves are installed with these hollow chamber wheels in place of the conventional rubber valves. Metal valve must be replaced completely for each tire change.

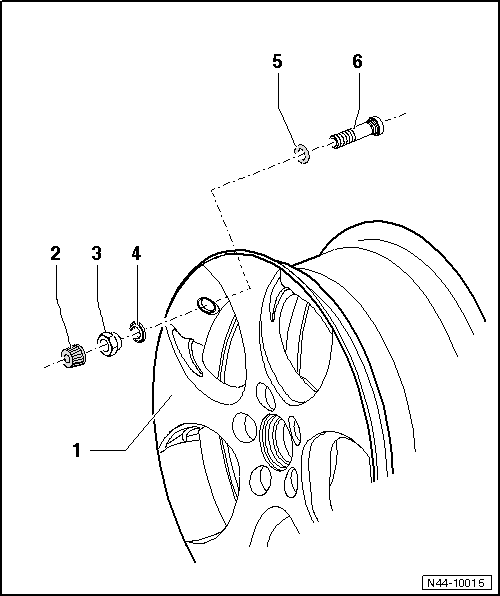

Fig 1: Alloy Wheels With Metal Valve
GWWN44-10015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Disk Wheel
  2. Valve Cap
  3. Nut
    • 4 Nm
  4. Washer
  5. Seal
  6. Metal Valve
