Ribbed Belt

Special tools and workshop equipment required

• Locking Pin T10060 A

Removing

-- Remove the noise insulation. Refer to Description and Operation .

-- Mark the rotation direction of the used ribbed belt, if reinstalling later.

Vehicles with an Evaporative Emission (EVAP) Canister Inside the Engine Compartment:

-- Disengage the EVAP canister and move it to the side.

Continuation for all Vehicles:

-- Rotate the tensioner in the -direction of the arrow- to release the tension on the ribbed belt.

Fig 1: Relieving Tension On Poly V-Belt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Secure the tensioner using the locking pin T10060 A.

Fig 2: Identifying Lock Tensioner With Locking Pin T10060 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the ribbed belt.

Installing

-- Install in reverse order of removal. Note the following:

After the belt is installed, always perform the following:

-- Start the engine and check the belt running.

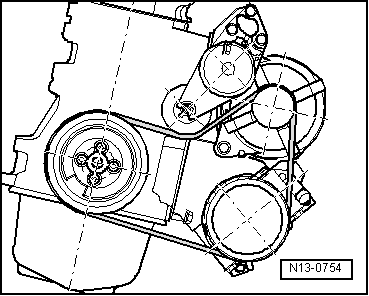

Fig 3: Identifying Belt Seated correctly

Courtesy of VOLKSWAGEN UNITED STATES, INC.
